A-Light (Acuity Brands Lighting)
O3. Allége.
Configure
Add to project
RESOURCES
DESCRIPTION

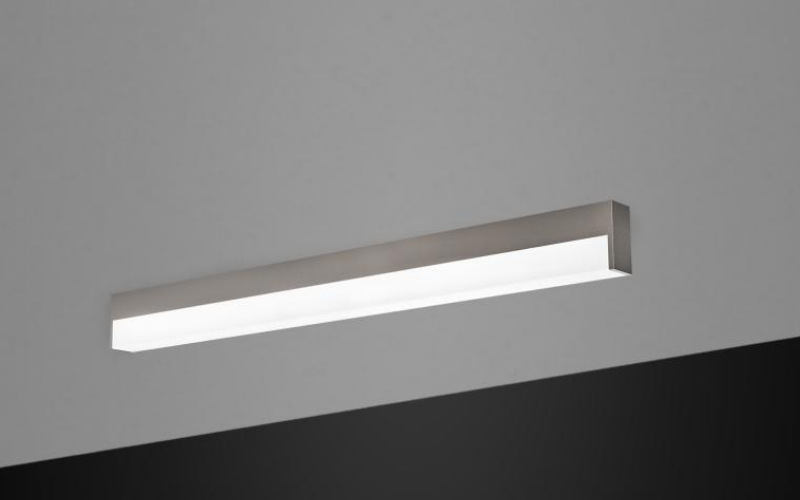

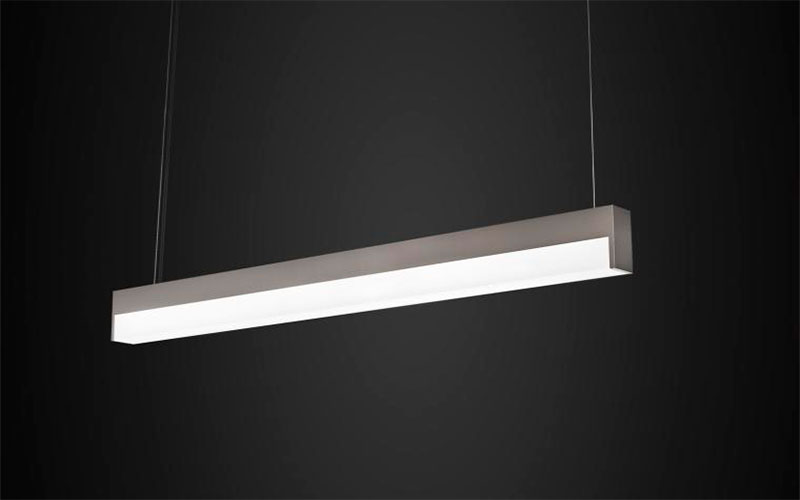

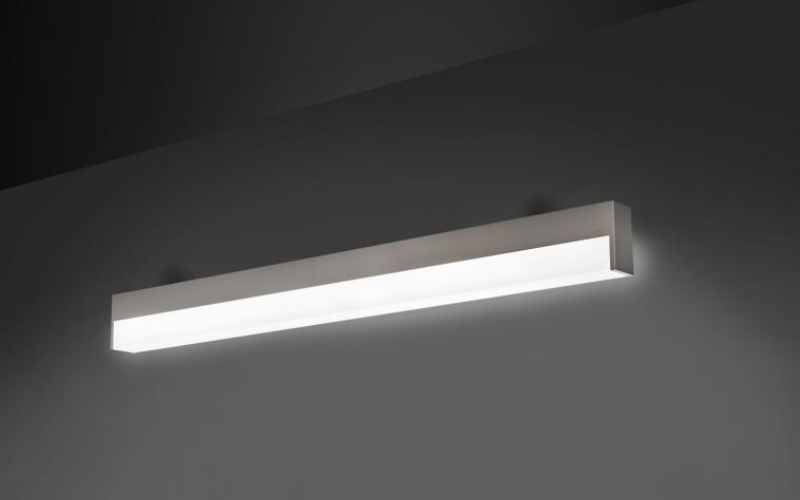

O3 is A-Light's 3-dimensional lensed luminaire, wrapping around the aluminum extruded housing to form a minimal, sleek 2.25" x 4.5" shape. The 3D omni-directional, captive lens delivers 180° illumination in a frosted opal WISP™ material. The ability to suspend and surface mount individual fixtures as small as 1' in length and continuous exact length rows provides ample application opportunities.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.25"L: 4 Ft8 Ft12 FtRun length (inch)H: 4.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)4.75 W/Ft9.6 W/Ftcustom
- Lumens(Approx)470 Lm/Ft943 Lm/Ftcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%ELV/Reverse/Trailing0-10VLutron Hi-lume EcoSystem (LDE1)eldoLED ECO DALI
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULADA
- EnvironmentMRIDampWetNatatorium
- Mounting TypePendantCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeO3
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
