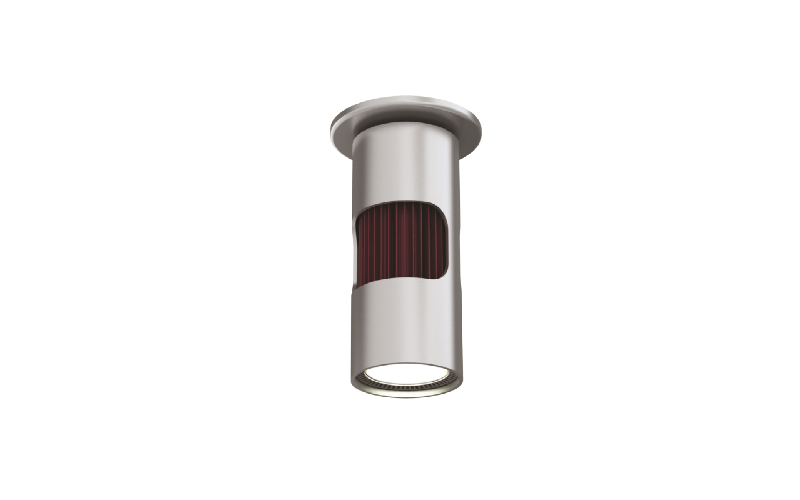

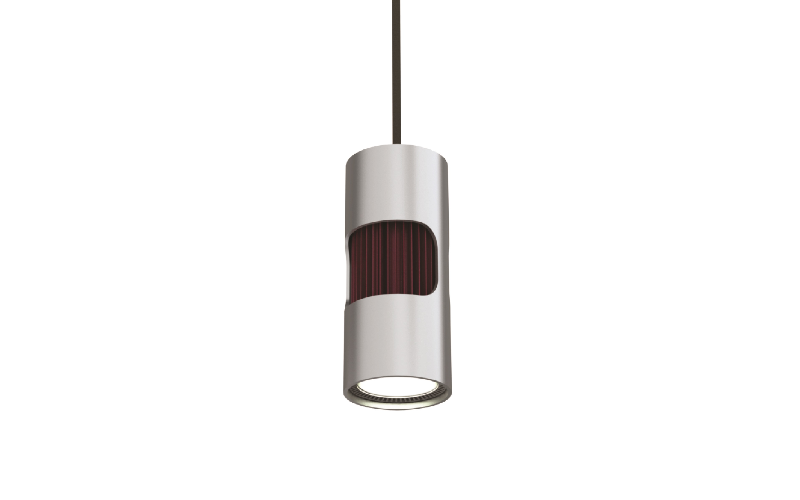

СС3. CORE 3 ROUND, CUTOUT, DIRECT ILLUMINATION.
Configure
Add to project
RESOURCES
DESCRIPTION
Our CORE cylinders provide aesthetic design forms without compromising on performance.
The CORE Cutout model features lumen packages up to 6,000 lumens and precise optics ranging from 15° – 80° along with various lens accessories to add versatility to your applications. CORE Cutout cylinders are available with direct and direct/indirect output combinations from 3.5”, 4.5” and 6” diameters by 8.1″ – 15.4″ tall, round shells. These models are available with pendant, yoke, sconce, and surface mounting combined to fit a variety of spaces.
The CORE Cutout cylinder body features an elegant heat sink available in our standard finishes, cladded by a cutout design of your choice.
The CORE Cutout model features lumen packages up to 6,000 lumens and precise optics ranging from 15° – 80° along with various lens accessories to add versatility to your applications. CORE Cutout cylinders are available with direct and direct/indirect output combinations from 3.5”, 4.5” and 6” diameters by 8.1″ – 15.4″ tall, round shells. These models are available with pendant, yoke, sconce, and surface mounting combined to fit a variety of spaces.
The CORE Cutout cylinder body features an elegant heat sink available in our standard finishes, cladded by a cutout design of your choice.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.5"L: 3.5"H: 8.1"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)3.4 W7.3 W11.5 W15.9 W20.4 W25.2 W
- Lumens(Approx)500 Lm1000 Lm1500 Lm2000 Lm2500 Lm3000 Lm
- OpticsDirectNarrowMediumFloodWide FloodAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALIeldoLED ECO 0-10VeldoLED SOLO 0-10VDMX
- Controls/NetworkLutron®EthernetEnlightednLight®Integral Sensor
- Power/VoltageIntegralRemotePoEUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance55000 h
- CertificatesUL/CULADAT24*
- EnvironmentDamp
- Mounting TypePendantCeiling SurfaceWall SurfaceYoke
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCC3-D
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
