ALW
FB. FIVE BOW SUSPENDED, SURFACE.
Configure
Add to project
RESOURCES
DESCRIPTION

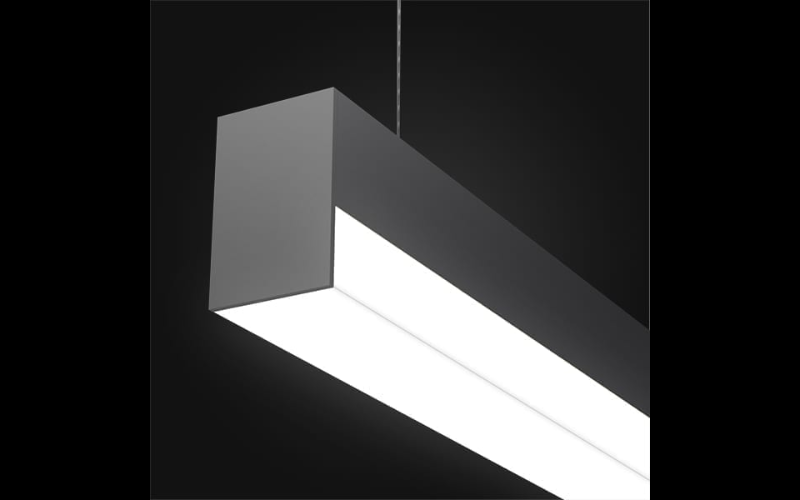

Five Bow is a direct or indirect luminaire available in suspended mount and ADA-compliant wall/ceiling/surface mount. With a Reveal lens (3-sided optic), and a cross section dimension of just under 2″, the Five Bow houses an integrated LED driver.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 3/4"L: Run length (Ft)H: 2 9/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable WhiteRGBRGBW
- CRI80 90
- Watt(Approx)4.4 W5.3 W7.2 W9.1 W5.9 W8.8 W
- Lumens(Approx)129 Lm294 Lm237 Lm650 Lm875 Lm923 Lm1100 Lm
- OpticsDirectIndirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%0-10VDALILutron Hi-lume EcoSystem (LDE1)Lutron T-Series (PSQ0)DMX
- Controls/NetworkLutron®EnlightedIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance54000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypePendantWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFB
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
