MR1.5A/MR3A. MOONRING 1.5 & 3 THE HARMONIC COLLECTION | ACOUSTICS MR1.5A/MR3A | SUSPENDED | CEILING MOUNT.
Configure
Add to project



RESOURCES
DESCRIPTION
Introducing The Harmonic Collection – Modern Acoustic Lighting solutions to both visually and acoustically enhance your space! At ALW, our mission is not only to Illuminate the Soul, but to influence your environment by creating the highest quality visual and aural experience. Learn more about The Harmonic Collection here.

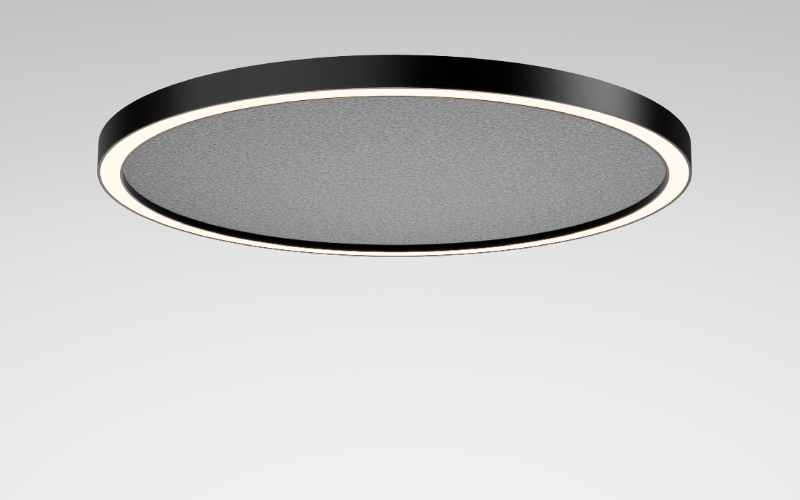

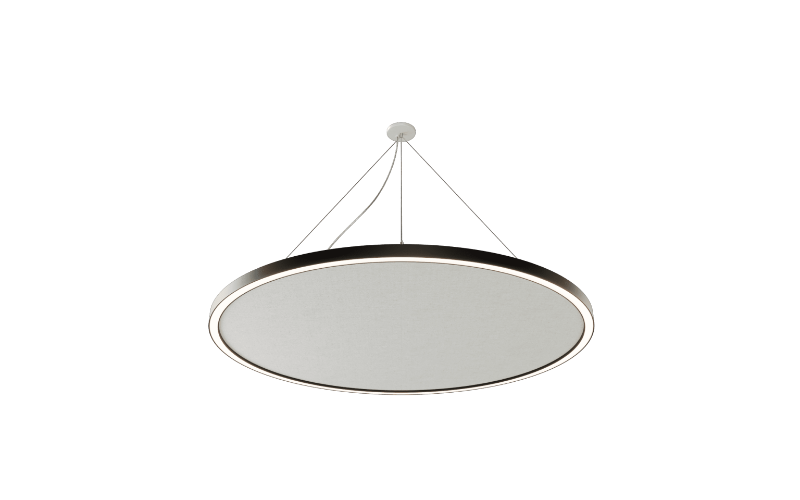

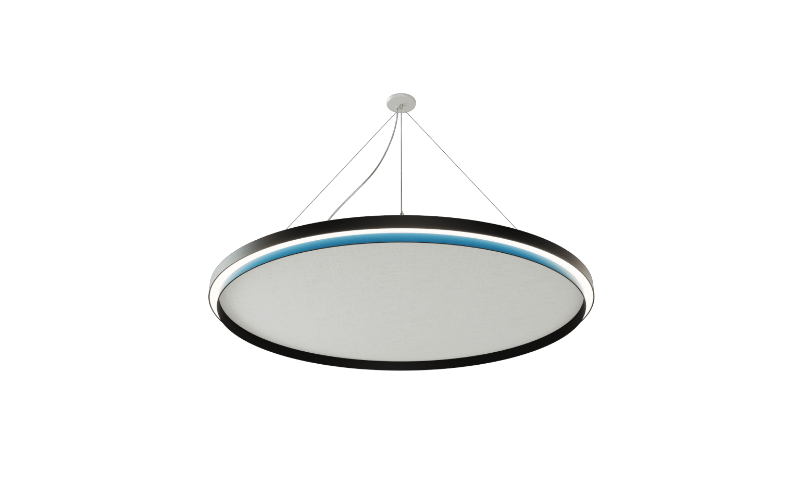

MoonRing is the most versatile ring offering in the industry, featuring an aperture of 1.5” or 3”, short/tall wall options with dual-tone finish options, and a wide range of customizable lumen outputs. Sizes range from 2ft. to 6ft. in diameter, and custom panel cutouts are available.
MoonRing is the most versatile ring offering in the industry, featuring an aperture of 1.5” or 3”, short/tall wall options with dual-tone finish options, and a wide range of customizable lumen outputs. Sizes range from 2ft. to 6ft. in diameter, and custom panel cutouts are available.
- Aperture: 1.5″ or 3″
- Diameter: 2ft. – 6ft. (customizable)
- LED Output: 1,500 – 21,300 lumens (customizable)
- Custom acoustic panel cutouts available
- Power-Over-Suspension Cable available – see The Cordless Collection for more details
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 24"36"48"60"72"L: 24"36"48"60"72"H: 1.75"3.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)44-117 W68-180 W92-242 W116-305 W140-367 Wcustom
- Lumens(Approx)3150-12400 Lm4775-18575 Lm6350-24825 Lm7950-30975 Lm9550-37225 Lmcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworkLutron®EthernetEnlightednLight®Wireless Dimming
- Power/VoltageRemotePoEUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance54000 h
- CertificatesETLT24*
- EnvironmentDamp
- Mounting TypePendantCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
