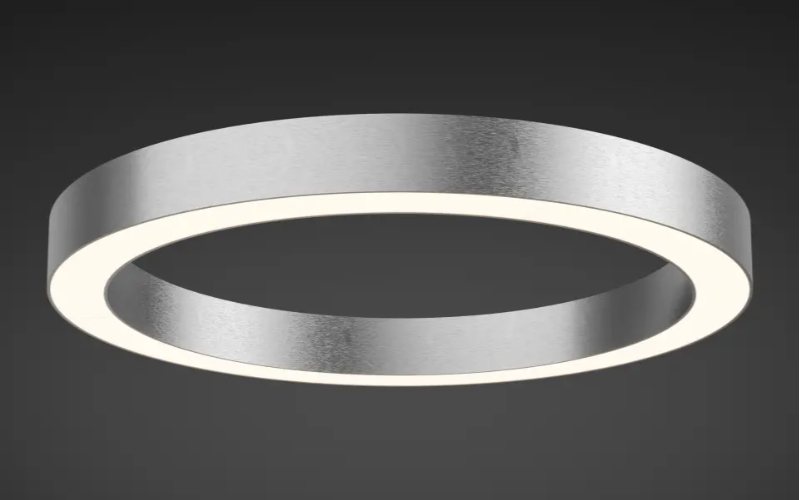

MR3. MOONRING 3 SUSPENDED, CEILING.
Configure
Add to project
RESOURCES
DESCRIPTION
Profile 3 in Aperture
Sizes 2ft - 16ft diameter Standard, Custom diameters available
Mounting Suspended
Distribution Direct, Bidirectiona Illumination
LED Output 100lm/ft - 1130lm/ft Direct, 100lm/ft - 1265lm/ft Indirect, Tunable White (2700K – 6500K), RGB, RGB+W (3500K White, 90CRI)
CCT 2700K, 3000K, 3500K, 4000K, 5000K
Optics Diffused acrylic lens — direct/indirect, Clear (high transmission) lens — indirect
Location Indoor (Dry Locations Only)
Sizes 2ft - 16ft diameter Standard, Custom diameters available
Mounting Suspended
Distribution Direct, Bidirectiona Illumination
LED Output 100lm/ft - 1130lm/ft Direct, 100lm/ft - 1265lm/ft Indirect, Tunable White (2700K – 6500K), RGB, RGB+W (3500K White, 90CRI)
CCT 2700K, 3000K, 3500K, 4000K, 5000K
Optics Diffused acrylic lens — direct/indirect, Clear (high transmission) lens — indirect
Location Indoor (Dry Locations Only)
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3"L: 24"36"48"60"72"84"96"120"144"168"192"Run length (Ft)H: 3.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KTunable White
- CRI80 90
- Watt(Approx)22 W35 W47 W70 W59 Wcustom
- Lumens(Approx)1500 Lm1750 Lm1650 Lm1950 Lm2250 Lm3000 Lm2500 Lm4500 Lm3200 Lm3350 Lm3600 Lm5050 Lmcustom
- OpticsDirectDirect/IndirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED SOLO 0-10VDMX
- Controls/NetworkLutron®Wattstopper® DLMNX WirelessCasambiWaveLinx
- Power/VoltageRemotePoEUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance161000 h
- CertificatesETLT24*
- EnvironmentAntimicrobial Finish
- Mounting TypePendantCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMR3-1
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
