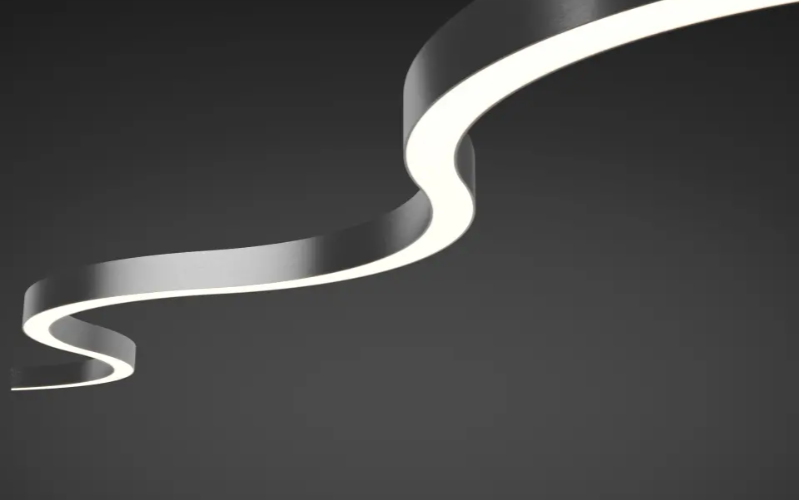

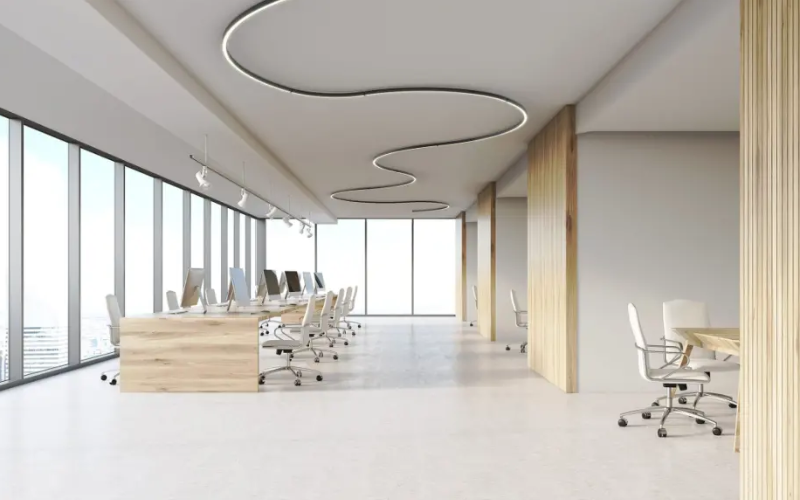

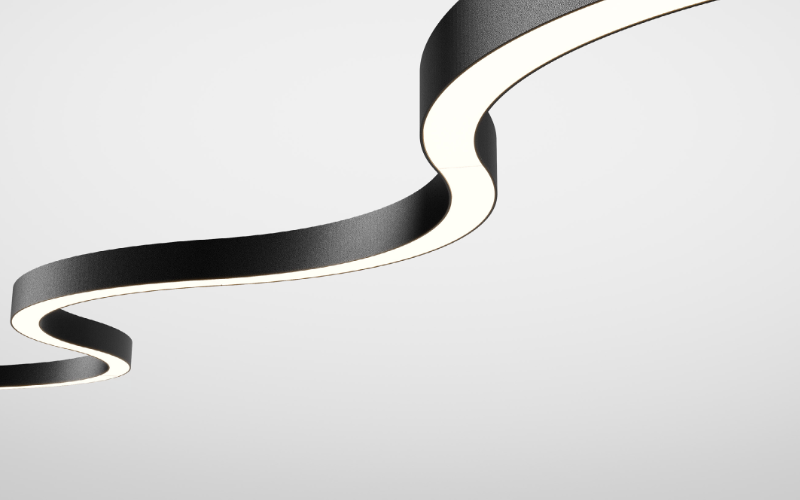

MR3. MOONRING PATTERNS SUSPENDED, CEILING.
Configure
Add to project
RESOURCES
DESCRIPTION
MR3 Patterns is an extension of the MoonRing Family.
Specify custom ceiling layouts: serpentine runs, soft corner configurations, and continuous compositions using the same 3" profile. Patterns are specified by total length of linear segments and total length of curved sections, with a minimum curve radius of 12".
Specify custom ceiling layouts: serpentine runs, soft corner configurations, and continuous compositions using the same 3" profile. Patterns are specified by total length of linear segments and total length of curved sections, with a minimum curve radius of 12".
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3"L: Run length (Ft)H: 3.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KTunable White
- CRI80 90
- Watt(Approx)3.5 W/Ft5.2 W/Ft6.9 W/Ft8.7 W/Ft10.3 W/Ft11 W/Ft12.8 W/Ftcustom
- Lumens(Approx)295 Lm/Ft375 Lm/Ft420 Lm/Ft330 Lm/Ft565 Lm/Ft750 Lm/Ft540 Lm/Ft630 Lm/Ft605 Lm/Ft845 Lm/Ft1130 Lm/Ft1265 Lm/Ftcustom
- OpticsDirectDirect/IndirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED SOLO 0-10VDMX
- Controls/NetworkLutron®Wattstopper® DLMNX WirelessCasambiWaveLinx
- Power/VoltageRemotePoEUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance161000 h
- CertificatesETLT24*
- Environment
- Mounting TypePendantCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMR3-P
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
