RPD15. TWIST OPEN SUSPENDED PENDANT.
Configure
Add to project
RESOURCES
DESCRIPTION
Twist Open is available in three distinct design types – square, rectangle and triangle. Each illuminated “arm” section can be rotated up to 30 degrees in each direction (60 degrees total) which allows one to adjust the luminaire’s shape in the field to suit aesthetic preferences and/or to direct light where needed.
Square – RPD15/S: Twist Open S has a square shape with three rotation points and is available in sizes of 39″x39″, 51″x51″ and 63″x63″.
Rectangle – RPD15/R: Twist Open R has a rectangular shape with three rotation points and is available in sizes of 39″x62″ and 50″x74″.

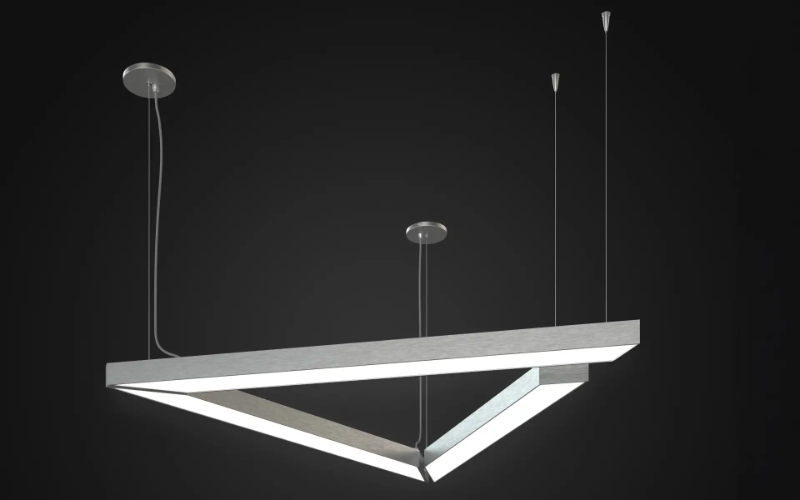

Triangle – RPD15/T: Twist Open T has a triangular shape with two rotation points and is available in sizes of 38″x33″, 50″x43″, and 62″x54″.
Square – RPD15/S: Twist Open S has a square shape with three rotation points and is available in sizes of 39″x39″, 51″x51″ and 63″x63″.
Rectangle – RPD15/R: Twist Open R has a rectangular shape with three rotation points and is available in sizes of 39″x62″ and 50″x74″.
Triangle – RPD15/T: Twist Open T has a triangular shape with two rotation points and is available in sizes of 38″x33″, 50″x43″, and 62″x54″.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 38.5"32.7"50.25"43.1"53.5"62.25"L: 38.5"32.7"50.25"43.1"53.5"62.25"H: 2.125"
- Light SourceLED
- CCT/Color2700K3000K3500K4000KRGBRGBW
- CRI90
- Watt(Approx)121 W188 W248 W167 W227 W257 W324 W
- Lumens(Approx)4512 Lm6238 Lm9814 Lm7169 Lm9492 Lm8471 Lm12469 Lm12485 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%0-10VLutron Hi-Lume 2-wire (LTEA)Lutron Hi-lume Eco (L3DAE)DMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesETL
- EnvironmentAntimicrobial Finish
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeRPD15
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
