Aculux (Acuity Brands Lighting)

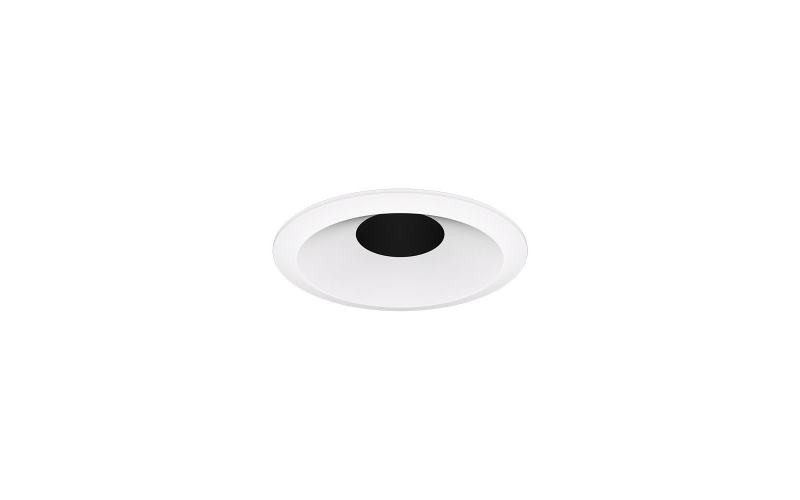

AX3 D. AX3 3'' Round Downlight Precision Recessed New Construction.
Configure
Add to project
RESOURCES
DESCRIPTION
Aculux® 3-inch LED precision luminaires are available in 6 lumen packages ranging from 800-3000 delivered lumens while consuming only 7-33 watts. These downlight luminaires are compatible with downlighting and wall wash trims. The luminaire features field interchangeable optics in 10 distributions, capable of delivering up to 31,000 CBCP. The deep source regression provides excellent shielding with 45 degree visual cutoff.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5"3 7/8"L: 5"3 7/8"
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000KTunable White
- CRI80 90 95
- Watt(Approx)7 W12 W11 W14 W20 W26 W33 W
- Lumens(Approx)549 Lm765 Lm1123 Lm1394 Lm1969 Lm2448 Lm2801 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume EcoSystem (LDE1)eldoLED ECO DALIeldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10VeldoLED SOLO DMX
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USAT24*Energy Star*BAA
- EnvironmentDampWet
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid CeilingTrimless WoodTrimless Stone/Tile
- HousingNew ConstructionChicago PlenumIC Air Tight
- Housing Depth4 ''5 7/16 ''8 15/16 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
