Aculux (Acuity Brands Lighting)

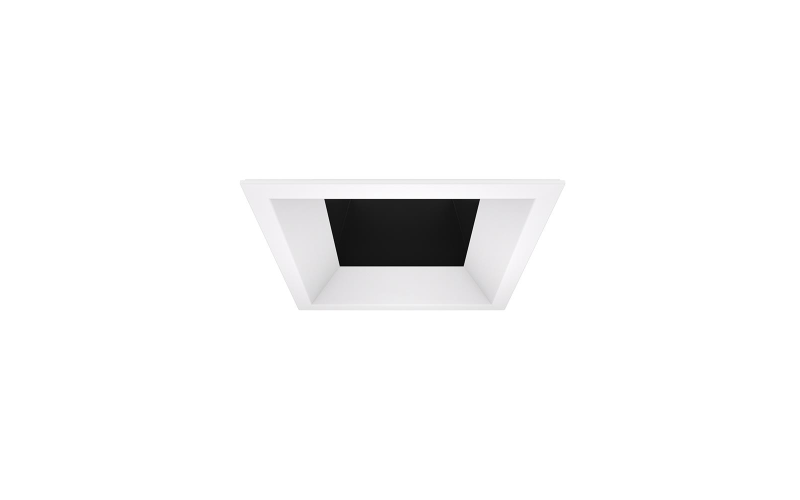

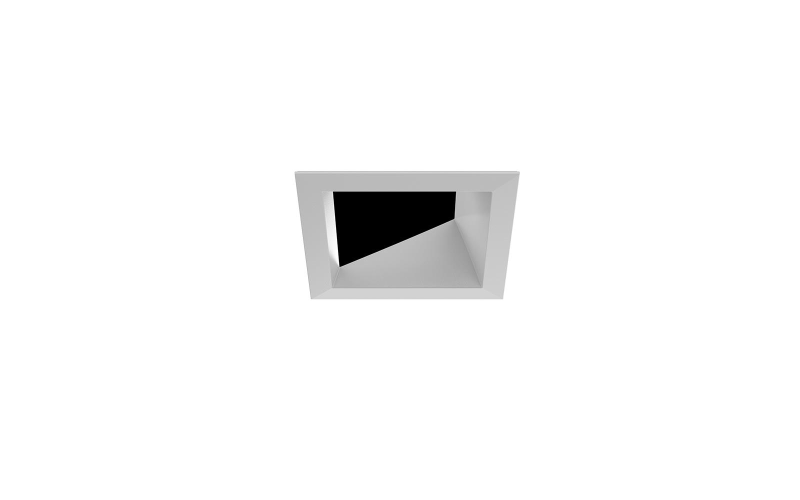

AX4SQ A. AX4SQ 4'' Square Adjustable Precision Recessed New Construction.
Configure
Add to project




RESOURCES
DESCRIPTION
Aculux® 4-inch Square LED precision luminaires produce up to 3200 lumens while consuming only 12-36 watts. The luminaires are perfect for accent, task, or wall wash lighting applications. The luminaire optical control system is Spot On in every way with the Acu-Aim™ geared aiming, 370 deg. rotation and 45 deg. vertical tilt, and have the capability of producing ten beam distributions. The patented auto-adjusting optic holder and optimized center-beam optics combined maximizes fixture efficiency and light output providing the right amount of light to be directed precisely at the intended target.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.72"4.93"5.73"L: 5.72"4.93"5.73"
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000KTunable White
- CRI80 90 95
- Watt(Approx)9 W13 W16 W19 W29 W25 W33 W
- Lumens(Approx)727 Lm1286 Lm1436 Lm1649 Lm2242 Lm2770 Lm3298 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- AdjustableHot Aiming
- DimmingDim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume EcoSystem (LDE1)eldoLED ECO DALIeldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10VeldoLED SOLO DMX
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULT24*Energy Star*BAA
- EnvironmentDampWet
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid CeilingTrimless WoodTrimless Stone/Tile
- HousingNew ConstructionChicago PlenumIC Air Tight
- Housing Depth7.2 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
