Aculux (Acuity Brands Lighting)

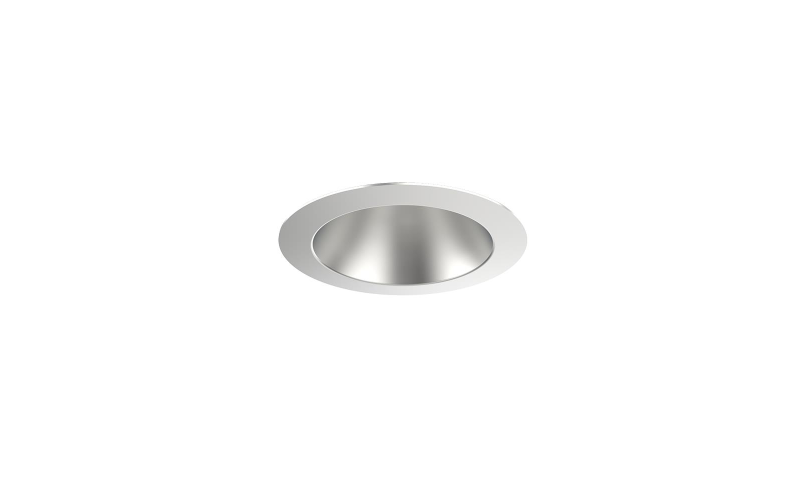

INIT3 D. Initia 3'' Round Downlight Value Precision Recessed New Construction & Remodel.
Configure
Add to project
RESOURCES
DESCRIPTION
Aculux® Initia 3-inch LED is an affordable precision recessed luminaire offering elegance and performance in 4 lumen packages (ranging from 400-1500 delivered lumens). Available in both ICAT and non-ICAT configurations, this downlight features field-interchangeable optics available in 4 distributions (18°- 50°) and offers superb 45° visual cut-off for a truly quiet ceiling. Aculux initia fixed downlight is compatible with initia downlight and wall wash trims which provide excellent below ceiling aesthetics that coordinate with the AX3 family.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3"L: 3"
- Light SourceLED
- CCT/Color2700K3000K3500K
- CRI80 90
- Watt(Approx)8 W12 W16 W
- Lumens(Approx)854 Lm1294 Lm1605 Lm
- OpticsDirectMediumFloodWide Flood
- Adjustable
- DimmingDim to 1%TRIAC/Forward/LeadingELV/Reverse/TrailingeldoLED ECO 0-10V
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULT24*BAA
- EnvironmentDamp
- Mounting TypeCeiling Recessed
- HousingNew ConstructionIC Air Tight
- Housing Depth4 ''5.3 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeINIT3-D_QS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
