Aculux (Acuity Brands Lighting)

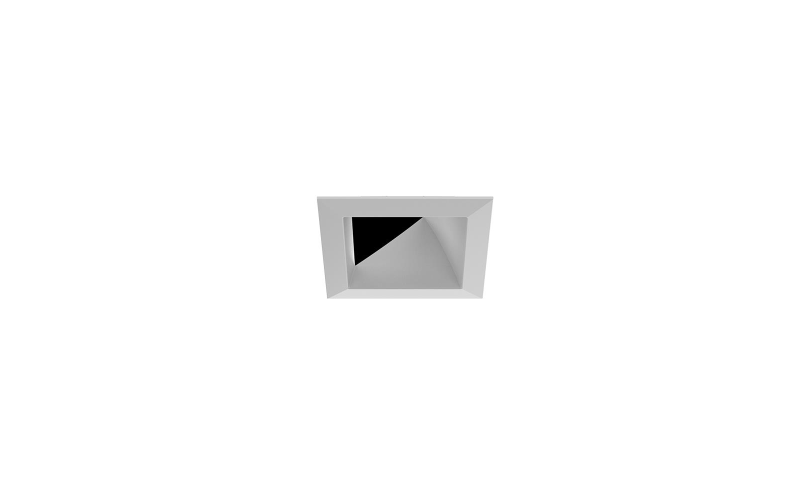

INIT3SQ A. Initia 3'' Square Adjustable Value Precision Recessed New Construction & Remodel.
Configure
Add to project
RESOURCES
DESCRIPTION
Aculux® Initia 3-inch LED is an affordable precision recessed luminaire offering elegance and performance in 3 lumen packages (ranging from 400-1200 delivered lumens). Available in both ICAT and non-ICAT configurations, this recessed adjustable features field-interchangeable optics available in 4 distributions (18°- 50°) and 359° rotation, 35° tilt hot aiming. Aculux Initia adjustable housing is compatible with Initia adjustable trims which provide excellent below ceiling aesthetics that coordinate with the AX3 family.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.625"3.875"L: 4.625"3.875"
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000K
- CRI80 90
- Watt(Approx)5 W8 W12 W16 W
- Lumens(Approx)465 Lm808 Lm1224 Lm1518 Lm
- OpticsDirectMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron EcoSystemeldoLED ECO 0-10V
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULT24*BAA
- EnvironmentDampWet
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid Ceiling
- HousingNew ConstructionChicago PlenumRemodelIC Air Tight
- Housing Depth4 ''5.3 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
