Aculux (Acuity Brands Lighting)
INIT3SQ D. Initia 3'' Square Wall Wash Value Precision Recessed New Construction & Remodel.
Configure
Add to project
RESOURCES
DESCRIPTION

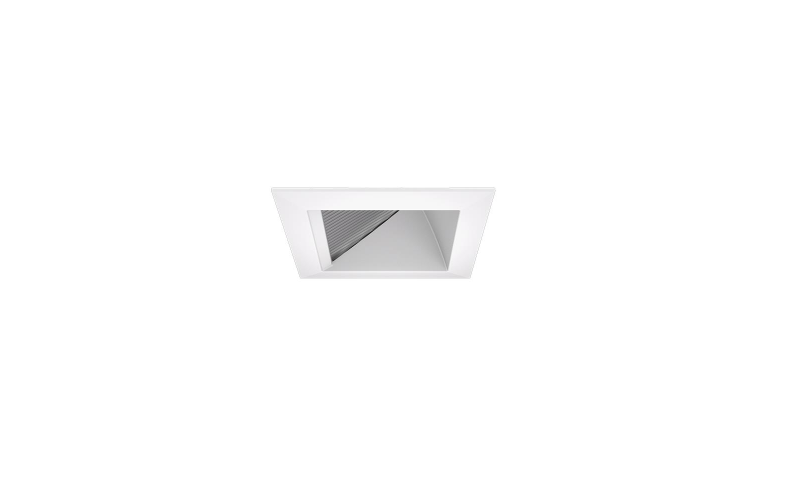

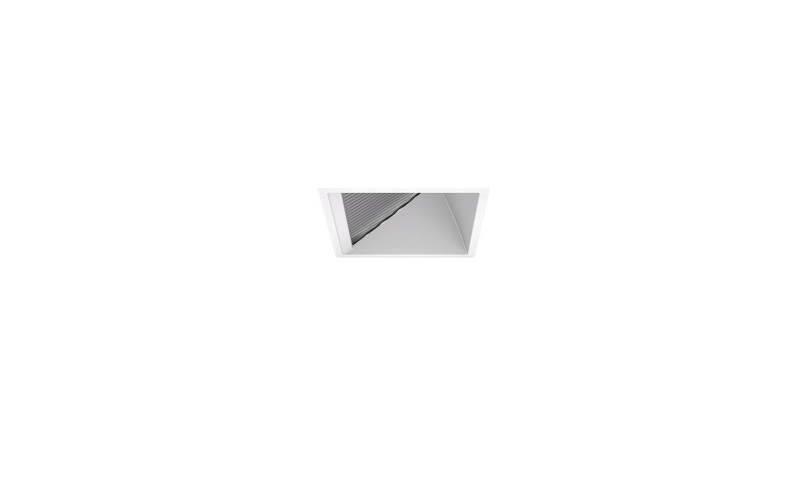

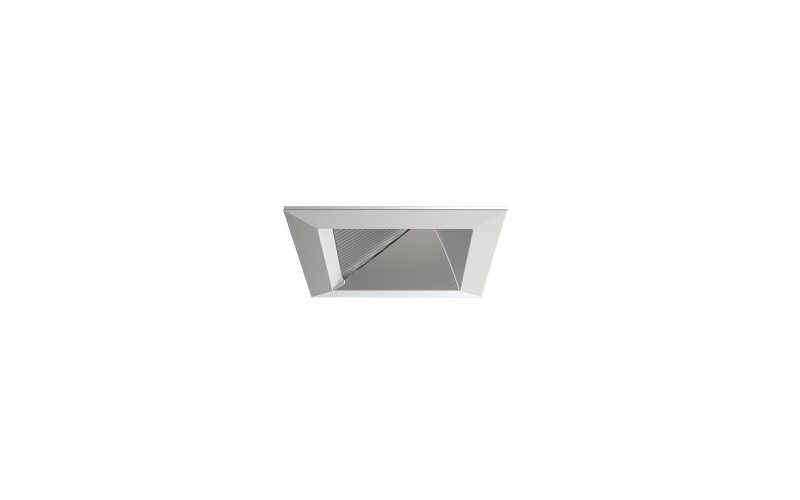

Die-cast aluminum, square lensed wall wash trim is available in flanged and flangeless (gypsum) style along with a wide range of finishes. Trim is UL damp location rated and is compatible with Aculux® Initia 3-inch LED square fixed downlight housings.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.625"3.875"L: 4.625"3.875"
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000K
- CRI80 90
- Watt(Approx)5 W8 W12 W16 W
- Lumens(Approx)511 Lm887 Lm1344 Lm1103 Lm1667 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron EcoSystemeldoLED ECO 0-10V
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULT24*BAA
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid Ceiling
- HousingNew ConstructionChicago PlenumRemodelIC Air Tight
- Housing Depth4 ''5.3 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
