Aculux (Acuity Brands Lighting)
INIT3SQ D. Initia 3'' Square Wall Wash Value Precision Recessed New Construction & Remodel.
Configure
Add to project
RESOURCES
DESCRIPTION

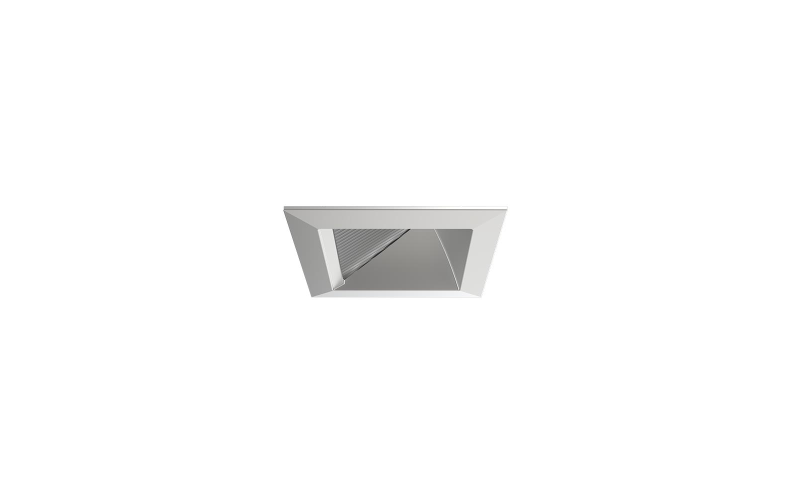

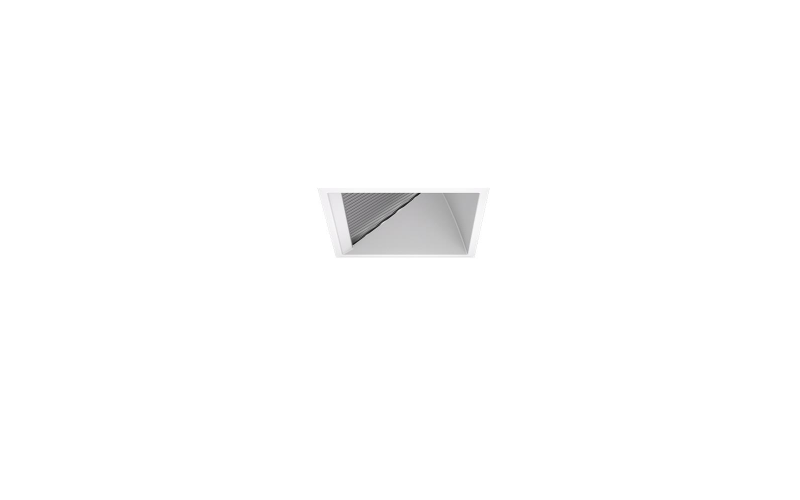

Die-cast aluminum, square lensed wall wash trim is available in flanged and flangeless (gypsum) style along with a wide range of finishes. Trim is UL damp location rated and is compatible with Aculux® Initia 3-inch LED square fixed downlight housings.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.625"L: 4.625"
- Light SourceLED
- CCT/Color2700K3000K3500K
- CRI80 90
- Watt(Approx)8 W12 W16 W
- Lumens(Approx)887 Lm1344 Lm1667 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 1%TRIAC/Forward/LeadingELV/Reverse/TrailingeldoLED ECO 0-10V
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULT24*BAA
- EnvironmentDamp
- Mounting TypeCeiling Recessed
- HousingNew Construction
- Housing Depth4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeINIT3SQ-D-NT3SQWW_QS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
