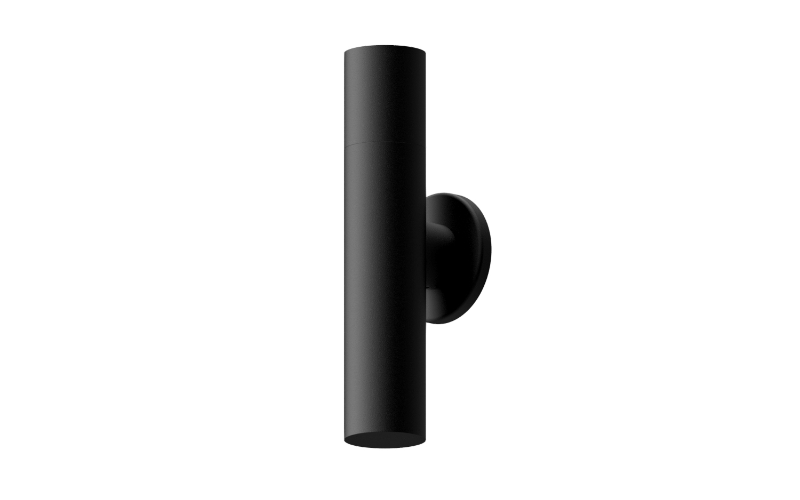

FIN6. Finch 1'' Wall Mount Cylinder Direct or Indirect with Remote Driver.
Configure
Add to project




RESOURCES
DESCRIPTION
The Finch® family of cylinders with a 1” aperture, features exceptional output, flexibility, and a broad range of configurations to provide discreet quality illumination while integrating into the architecture. It is available in a fixed downlight, adjustable (with 50° tilt), wall mount and even exterior ground mount options. Whether installed on ceilings, walls/mullions or the ground, the Finch® family blends seamlessly into its surroundings.
The Finch® wall mount cylinder, 6” in length, offers up to 1000 lm output and has a choice of beveled front door options for additional shielding for the direct portion and a flush lens for the indirect portion, to prevent dust accumulation.
The Finch® wall mount cylinder, 6” in length, offers up to 1000 lm output and has a choice of beveled front door options for additional shielding for the direct portion and a flush lens for the indirect portion, to prevent dust accumulation.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 1/4"L: 1 1/4"H: 6"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)6 W8 W10 W
- Lumens(Approx)643 Lm787 Lm927 Lm
- OpticsDirectIndirectMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/Network
- Power/VoltageRemote120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesCSA
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFIN6
—
