Ametrix (Cooper Lighting Solutions)

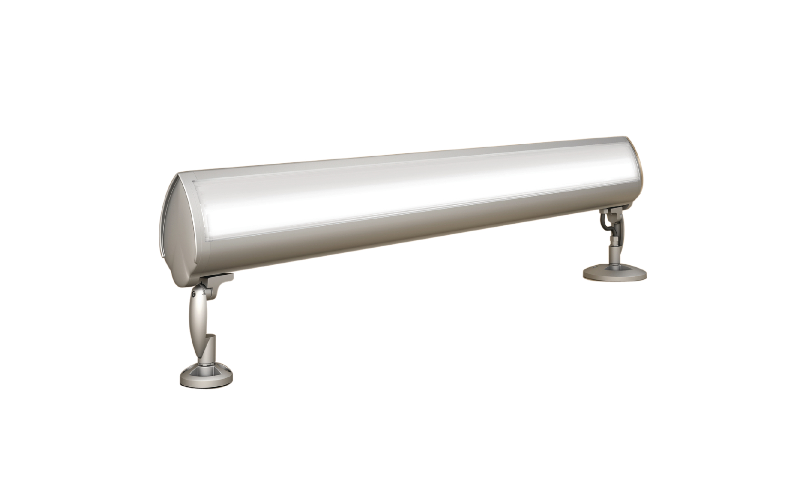

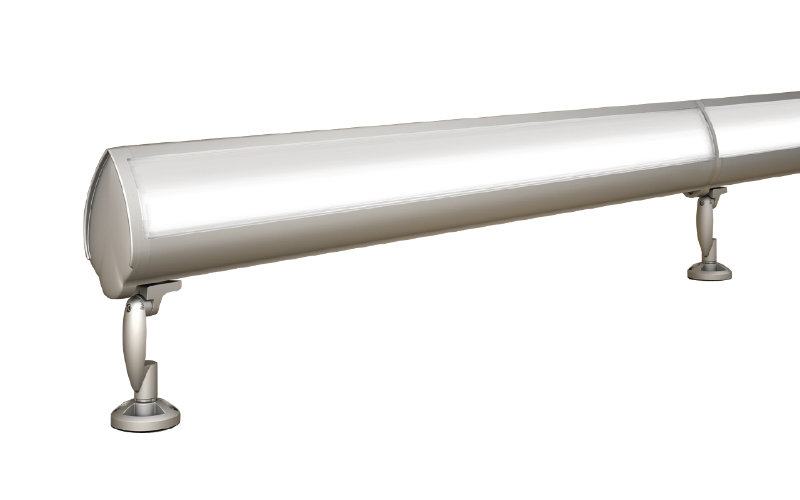

A02/A04/A06/A08/A12. ARROWLINEAR LED BASE MOUNT Asymmetric Indirect Individual/Continuous Linear.
Configure
Add to project



RESOURCES
DESCRIPTION
Arrowlinear LED provides performance, versatility and energy efficiency in a sleek, extra small product profile. Leading edge solid state components, combined with specular optics, create a smooth gradient of asymmetric illumination, free from striations and hot spots. Arrowlinear LED provides characteristics strikingly similar to linear fluorescent, but provides more light using less energy, while extending system life to 50,000 hours. An integral driver, which is standard, is compatible with 0-10V dimming systems providing "built-in" dimming. An extensive range of value-added installation and service features are standard.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 3/8”L: 27 3/8"51"77 7/16"101 1/16"151 3/16"Run length (Ft)H: 7"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80
- Watt(Approx)20.5 W40.5 W60.6 W82.2 W121.1 W
- Lumens(Approx)1990 Lm/Ft3980 Lm/Ft5970 Lm/Ft7960 Lm/Ft11940 Lm/Ft1043 Lm/Ft
- OpticsIndirectAsymmetric/Wash
- AdjustableLock Aiming
- DimmingDim to 3-10%Built-in dimmer
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CUL
- EnvironmentDampCorrosion Resistant
- Mounting TypeWall Arm/CantileverSurface Arm
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeA-IC
—
