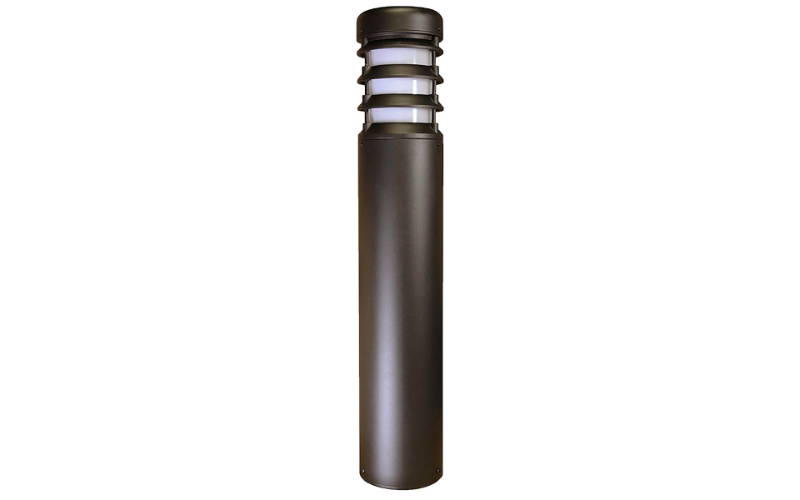

BL6061. Bollard LED.
Configure
Add to project
RESOURCES
DESCRIPTION
Material:
All parts are durable 356 cast aluminum and high strength extruded aluminum and spinnings.
Lens:
Choice of acrylic lens
Mounting:
Standard anchor bolts are 3/8” x 10” x 2”. Bolts, nuts and washers shall be hot dipped galvanized steel. Bolt pattern diameter is 6”.
Drivers:
Universal voltage 120-277 is standard. 0-10V, TRIAC and ELV dimming to 1% protocols are standard for LED module.
See page 2 table for LED engine and driver specs, voltage and dimming protocols.
Finish:
A polyester powder coat high quality finish is electro-statically applied and baked at 430° for exceptional durability and color retention. Products undergo an intensive five-step cleansing and pretreatment process for maximum paint adhesion.
Marine grade finish provides superior salt, humidity and UV protection. This coating withstands up to 3000 hours of continuous salt spray, comes with a 5-year warranty and is available in either a textured or gloss surface.
Modifications:
Consult factory for custom or modified designs.
All parts are durable 356 cast aluminum and high strength extruded aluminum and spinnings.
Lens:
Choice of acrylic lens
Mounting:
Standard anchor bolts are 3/8” x 10” x 2”. Bolts, nuts and washers shall be hot dipped galvanized steel. Bolt pattern diameter is 6”.
Drivers:
Universal voltage 120-277 is standard. 0-10V, TRIAC and ELV dimming to 1% protocols are standard for LED module.
See page 2 table for LED engine and driver specs, voltage and dimming protocols.
Finish:
A polyester powder coat high quality finish is electro-statically applied and baked at 430° for exceptional durability and color retention. Products undergo an intensive five-step cleansing and pretreatment process for maximum paint adhesion.
Marine grade finish provides superior salt, humidity and UV protection. This coating withstands up to 3000 hours of continuous salt spray, comes with a 5-year warranty and is available in either a textured or gloss surface.
Modifications:
Consult factory for custom or modified designs.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8"L: 8"H: 42"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 70
- Watt(Approx)10 W18 W32 W
- Lumens(Approx)664 Lm1195 Lm2148 Lm
- OpticsDirectType IType IIType IIIType V
- Adjustable
- DimmingDim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USA
- EnvironmentWetMarine
- Mounting TypeBollard
- Housing
- Housing Depth
