ANP Lighting

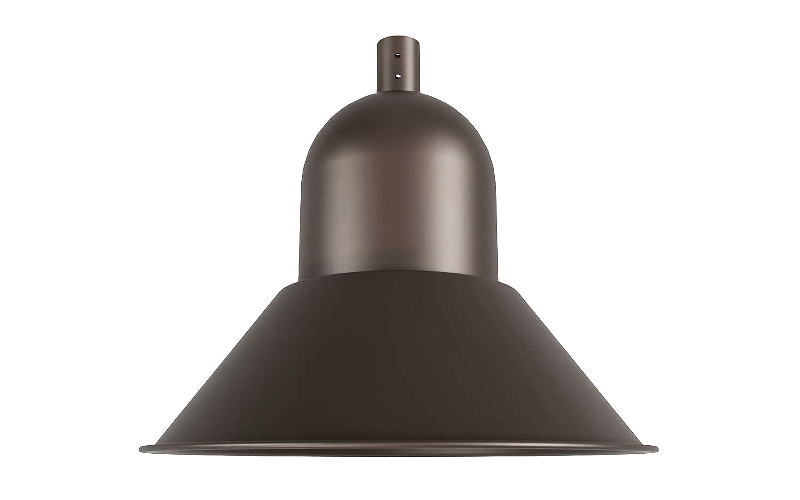

BVA2001. Bella Vista.
Configure
Add to project
RESOURCES
DESCRIPTION
Material:
All parts are durable 356 cast aluminum and high strength aluminum spinnings. All hardware provided shall be stainless steel or zinc plated steel.
Fixture Mounting:
Pendant Mount: Pin mount to tenon. Fits 3” and 4” poles.
Drivers:
Universal voltage 120-277 is standard. 0-10V dimming is standard for LED platforms
Electrical:
Approximately 12” of pull wire extends from luminaire. Additional pull wire provided for post mount arms and wall mounts.
Finish:
A polyester powder coat high quality finish is electro-statically applied and baked at 430° for exceptional durability and color retention. Products undergo an intensive five-step cleansing and pretreatment process for maximum paint adhesion.
Marine grade finish provides superior salt, humidity and UV protection. This coating withstands up to 3000 hours of continuous salt spray, comes with a 5-year warranty and is available in either a textured or gloss surface.
Modifications:
Consult factory for custom or modified designs.
All parts are durable 356 cast aluminum and high strength aluminum spinnings. All hardware provided shall be stainless steel or zinc plated steel.
Fixture Mounting:
Pendant Mount: Pin mount to tenon. Fits 3” and 4” poles.
Drivers:
Universal voltage 120-277 is standard. 0-10V dimming is standard for LED platforms
Electrical:
Approximately 12” of pull wire extends from luminaire. Additional pull wire provided for post mount arms and wall mounts.
Finish:
A polyester powder coat high quality finish is electro-statically applied and baked at 430° for exceptional durability and color retention. Products undergo an intensive five-step cleansing and pretreatment process for maximum paint adhesion.
Marine grade finish provides superior salt, humidity and UV protection. This coating withstands up to 3000 hours of continuous salt spray, comes with a 5-year warranty and is available in either a textured or gloss surface.
Modifications:
Consult factory for custom or modified designs.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 20"L: 20"H: 14"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI70
- Watt(Approx)30 W39 W46 W50 W65 W78 W90 W80 W120 W
- Lumens(Approx)4249 Lm3265 Lm4245 Lm5193 Lm6515 Lm5442 Lm7075 Lm8635 Lm10795 Lm12215 Lm15895 Lm
- OpticsDirectType IIType IIIType IVType V
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h80000 h
- CertificatesUL/CULDark SkyMade in USAT24*RoHSBAA
- EnvironmentIP66Marine
- Mounting TypePole/Mast ArmPole/Post TopPendantWall Arm/Cantilever
- Housing
- Housing Depth
