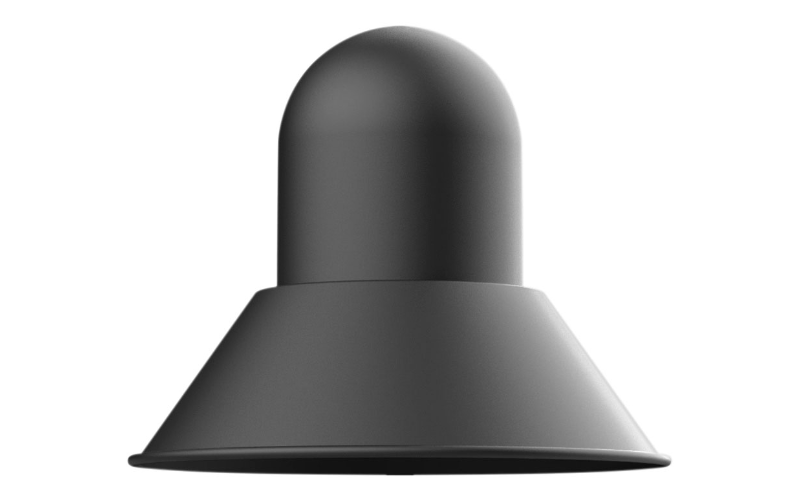

MBVA14. Mini Bella Vista LED.
Configure
Add to project
RESOURCES
DESCRIPTION
Material:
RLM shades are constructed of heavy duty spun aluminum. Wall back plate and driver housing are cast aluminum. All fasteners are stainless steel. Inside of shade is reflective white finish for all colors except galvanized paint finish. Screw hardware may not match paint.
Electrical:
Universal voltage 120-277 is standard. 0-10V, TRIAC and ELV dimming to 1% protocols are standard for LED modules. (12w is 120v and TRIAC dimming only)
See page 2 table for LED module and driver specs, voltage and dimming protocols.
Certifications:
Cord mounts are UL Listed for dry locations. Arm mount, stem mount and wall mount are UL Listed for wet locations.
Finish:
A polyester powder coat high quality finish is electro-statically applied and baked at 430° for exceptional durability and color retention. Products undergo an intensive five-step cleansing and pretreatment process for maximum paint adhesion.
Marine grade finish provides superior salt, humidity and UV protection. This coating withstands up to 3000 hours of continuous salt spray, comes with a 5-year warranty and is available in either a textured or gloss surface.
Modifications:
Consult factory for custom or modified designs
RLM shades are constructed of heavy duty spun aluminum. Wall back plate and driver housing are cast aluminum. All fasteners are stainless steel. Inside of shade is reflective white finish for all colors except galvanized paint finish. Screw hardware may not match paint.
Electrical:
Universal voltage 120-277 is standard. 0-10V, TRIAC and ELV dimming to 1% protocols are standard for LED modules. (12w is 120v and TRIAC dimming only)
See page 2 table for LED module and driver specs, voltage and dimming protocols.
Certifications:
Cord mounts are UL Listed for dry locations. Arm mount, stem mount and wall mount are UL Listed for wet locations.
Finish:
A polyester powder coat high quality finish is electro-statically applied and baked at 430° for exceptional durability and color retention. Products undergo an intensive five-step cleansing and pretreatment process for maximum paint adhesion.
Marine grade finish provides superior salt, humidity and UV protection. This coating withstands up to 3000 hours of continuous salt spray, comes with a 5-year warranty and is available in either a textured or gloss surface.
Modifications:
Consult factory for custom or modified designs
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 14"L: 14"H: 11 3/4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI70 or higher80 or higher90 or higher
- Watt(Approx)10 - 15 W15 - 20 W20 - 30 W30 - 40 W
- Lumens(Approx)500 - 750 Lm750 - 1000 Lm1,000 - 1,500 Lm1,500 - 2,000 Lm2,000 - 3,000 Lm3,000 - 5,000 Lm
- OpticsDirectType V
- AdjustableLock Aiming
- DimmingDim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USA
- EnvironmentWetMarine
- Mounting TypePendantWall Arm/Cantilever
- Housing
- Housing Depth
