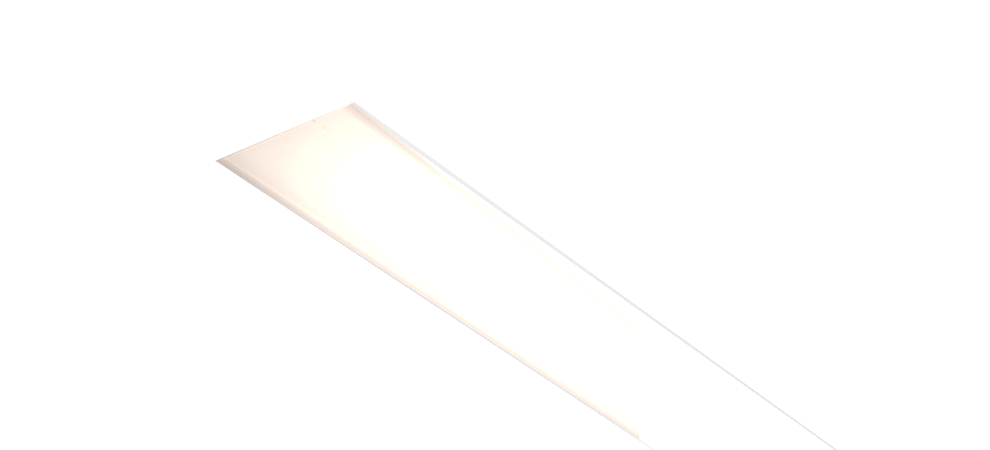

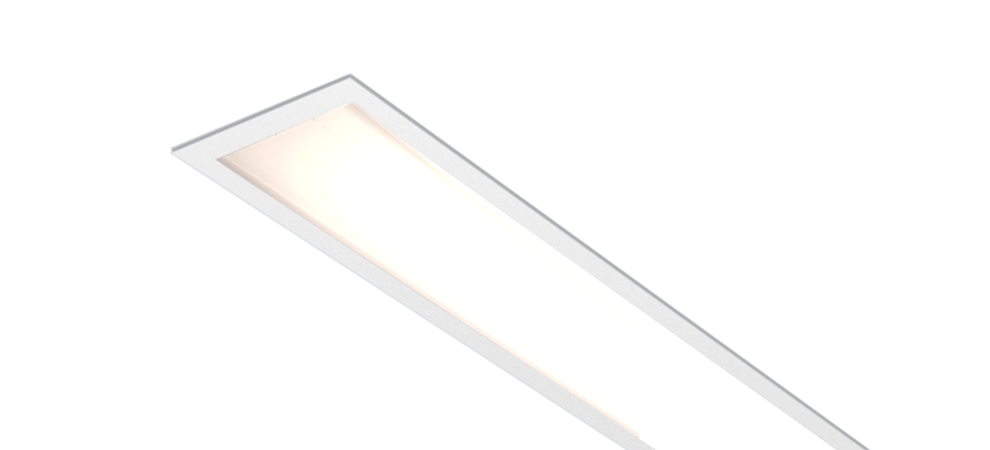

R91. Jack Recessed.
Configure
Add to project
RESOURCES
DESCRIPTION
Recessed extruded aluminum linear lighting system that can be specified in a variety of lengths. An extruded impact resistant frosted acrylic lens provides a diffused glow. Trimless installation option, and dimming version available.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.5"4"L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 FtRun length (Ft)
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable White
- CRI90
- Watt(Approx)5 W/Ft9 W/Ft14 W/Ftcustom
- Lumens(Approx)438 Lm/Ft788 Lm/Ft1225 Lm/Ftcustom
- OpticsDirectGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/Leading0-10VLutron Hi-Lume 2-wire (LTEA)Lutron Hi-lume EcoSystem (LDE1)Lutron T-Series (PSQ0)
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V347V
- Integral Emergency
- Lumen Maintenance54000 h
- CertificatesUL/CUL
- Environment
- Mounting TypeCeiling RecessedWall RecessedDrywallTrimless DrywallT-Grid CeilingSlot T-Grid Ceiling
- HousingIC
- Housing Depth3.4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeR91
