Axis Lighting
ARWLED. Air LED Wall Mount.
 Configure
 Add to project

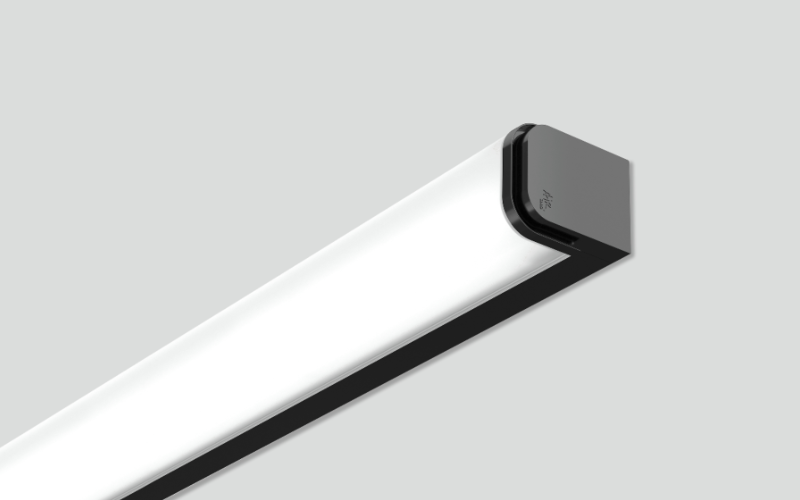

Axis Lighting. ARWLED. Air LED Wall Mount.
Axis Lighting. ARWLED. Air LED Wall Mount.
Axis Lighting. ARWLED. Air LED Wall Mount.
RESOURCES
DESCRIPTION
Light Distribution               Semi-direct, Direct-Indirect

Output                                 Up to 1000 lm/ft

Efficacy                                Up to 125 lm/W

Segments                           2’, 3’, 4’, 6’, 8’, 12’ lengths & System run
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3 15/16"
    L: 2 Ft3 Ft4 Ft6 Ft8 Ft12 FtRun length (Ft)
    H: 3 7/16"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000KTunable White
  • CRI
    80 90
  • Watt(Approx)
    8 W/Ftcustom
  • Lumens(Approx)
    500 Lm/Ft600 Lm/Ft800 Lm/Ft1000 Lm/Ftcustom
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
  • Controls/Network
    EthernetWireless DimmingIntegral Sensor
  • Power/Voltage
    IntegralPoEUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CULADA
  • Environment
    Damp
  • Mounting Type
    Wall Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
