Axis Lighting

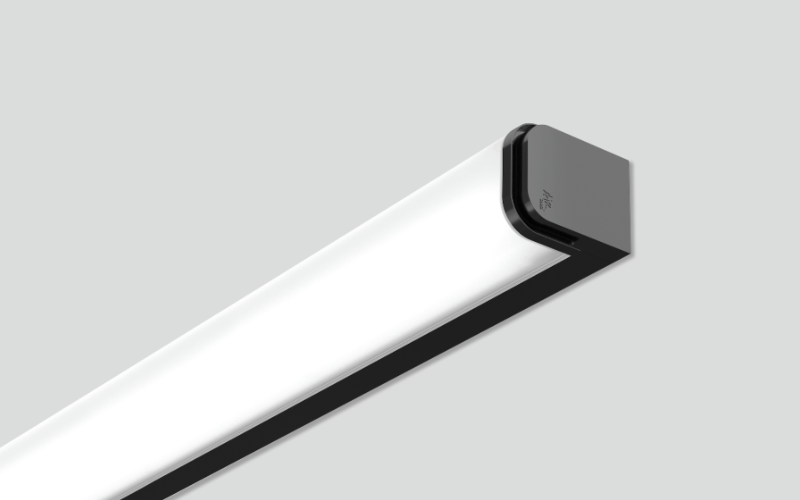

ARWBTLED. Air LED Wall Mount.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Light Distribution Semi-direct, Direct-Indirect
Output Up to 1000 lm/ft
Efficacy Up to 125 lm/W
Segments 2’, 3’, 4’, 6’, 8’, 12’ lengths & System run
Output Up to 1000 lm/ft
Efficacy Up to 125 lm/W
Segments 2’, 3’, 4’, 6’, 8’, 12’ lengths & System run
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 15/16"L: 2 Ft3 Ft4 Ft6 Ft8 Ft12 FtRun length (Ft)H: 3 7/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable White
- CRI80 90
- Watt(Approx)8 W/Ftcustom
- Lumens(Approx)500 Lm/Ft600 Lm/Ft800 Lm/Ft1000 Lm/Ftcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
- Controls/NetworkEthernetWireless DimmingIntegral Sensor
- Power/VoltageIntegralPoEUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeWall Arm/Cantilever
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeARWWBTLED
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
