Axis Lighting

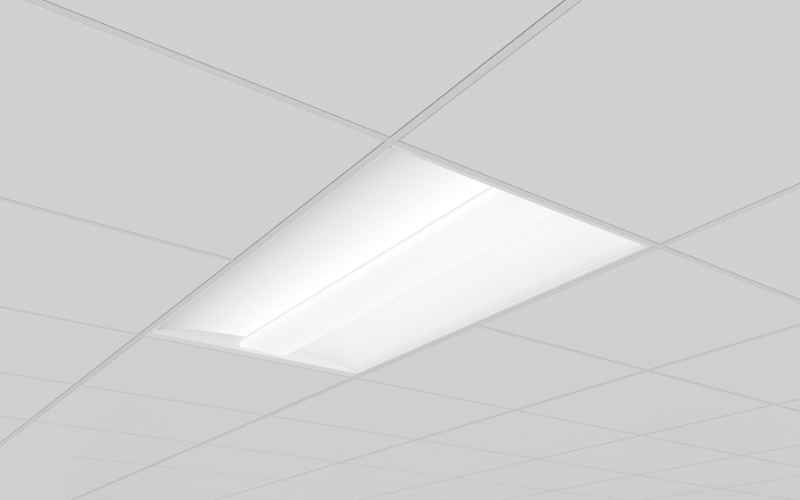

AULED. Aura 2x4 RECESSED T-Bar & Drywall.
 Configure
 Add to project
Axis Lighting. AULED. Aura 2x4 Recessed.
Axis Lighting. AULED. Aura 2x4 Recessed.
RESOURCES
DESCRIPTION
Aura features a triple-lens design with a ribbed center optical diffuser that provides balanced brightness and visual comfort. High-performance LED technology combined with the flexibility of optional integral controls and Axitune systems deliver considerable energy savings.

Aura is ideal for a variety of indoor applications, including offices, institutions and commercial spaces. Installation and maintenance are made easy with toolless lens installation and access to all components from below.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2 Ft
    L: 4 Ft
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000KTunable White
  • CRI
    80 90
  • Watt(Approx)
    27.4 W41.6 W47 W71.6 Wcustom
  • Lumens(Approx)
    1400 Lm3100 Lm4500 Lm5000 Lm6800 Lm7000 Lm7700 Lmcustom
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRLutron T-Series (PSQ0)DMX
  • Controls/Network
    EthernetEnlightedWireless DimmingIntegral Sensor
  • Power/Voltage
    IntegralPoEUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CULNYC
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedDrywallT-Grid CeilingSlot T-Grid Ceiling
  • Housing
    ICChicago PlenumAir Return
  • Housing Depth
    3 15/16 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
