Axis Lighting

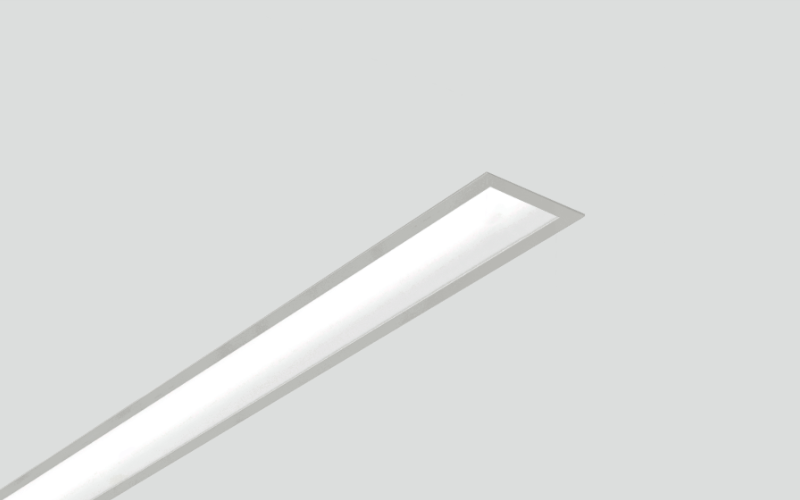

B2SQRLED. Beam 2 Square RECESSED MOUNT.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Light Distribution Direct
Output Up to 1000 lm/ft
Efficacy Up to 126 lm/W
Lengths 2' - 12' Standalone & System Runs
Output Up to 1000 lm/ft
Efficacy Up to 126 lm/W
Lengths 2' - 12' Standalone & System Runs
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 1/16"L: 48"60"72"96"144"Run length (Ft)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80
- Watt(Approx)7.6 W/Ft7.9 W/Ftcustom
- Lumens(Approx)300 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
- OpticsDirectGrazingNarrowGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid CeilingSlot T-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth3 1/4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeB2SQRLED_QS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
