Axis Lighting

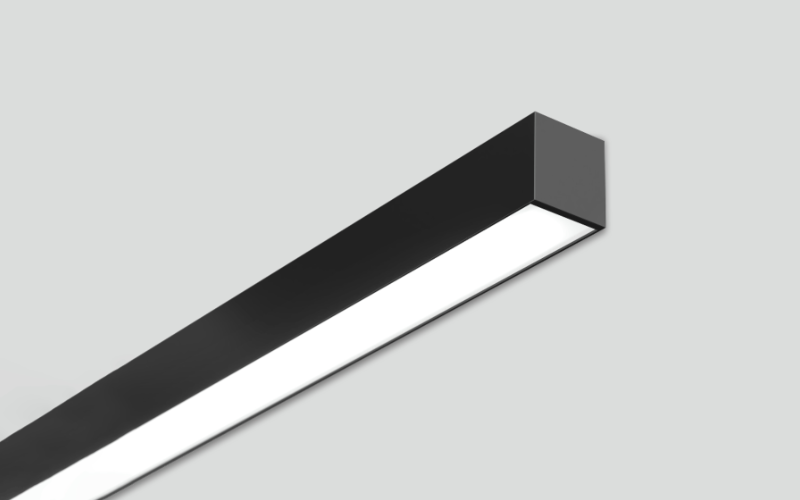

B2SQWDLED. Beam 2 Square WALL MOUNT - DIRECT.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Light Distribution Direct, Indirect
Output Direct Up to 1000 lm/ft
Output Indirect Up to 1100 lm/ft
Efficacy Up to 126 lm/w
Lengths 2' - 12' Standalone & System Runs
Output Direct Up to 1000 lm/ft
Output Indirect Up to 1100 lm/ft
Efficacy Up to 126 lm/w
Lengths 2' - 12' Standalone & System Runs
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 1/2"L: 4 Ft5 Ft6 Ft8 FtRun length (Ft)H: 2 3/4"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80
- Watt(Approx)7.6 W/Ft8.5 W/Ftcustom
- Lumens(Approx)300 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
- OpticsDirectGrazingNarrowGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- Environment
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeB2SQWDLED_QS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
