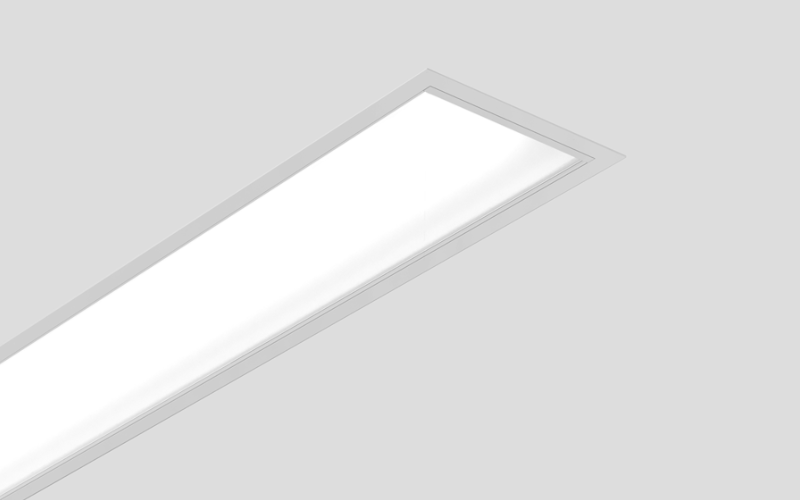

B6RLED. Beam 6 LED RECESSED MOUNT With combined distributions.
SPECIFICATIONS

CONFIGURATOR

Dimensions
W: 5 1/8"
L: 4 Ft5 Ft6 Ft8 Ft12 FtRun length (Ft)
Light Source
LED
CCT/Color
3000K3500K4000K
CRI
80
Watt^(Approx)
9.4 W/Ftcustom
Lumens^(Approx)
400 Lm/Ft500 Lm/Ftcustom
Optics
DirectGeneral DiffusedAsymmetric/Wash
Adjustable
Dimming
Dim to 1%0-10V
Controls/Network
Power/Voltage
IntegralUNV 120-277V120V277V347V
Integral Emergency
EM Integral
Lumen Maintenance
Certificates
UL/CUL
Environment
Mounting Type
Ceiling RecessedDrywallTrimless DrywallT-Grid CeilingTech ZoneSlot T-Grid Ceiling
Housing
ICChicago Plenum
Housing Depth
3 15/16 ''5 ''

Description:

DESCRIPTION

DIMENSIONS

LIGHT SOURCE

WATT/LUMENS

POWER/CONTROLS

i You reconfigured the product. To remove this message please update you custom description.

SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.

CONFIGURATOR

Marks unavailable product configuration, refer to manufacturer’s documentation for details

BUILD CATALOG NUMBER

PRODUCT DESCRIPTION
—

This complete linear lighting toolbox features a streamlined linear form factor designed for maximum versatility. It is available in multiple mountings, including recessed, pendant, surface, wall, vertical and perimeter, enabling you to create cohesive designs that unite the space.
