Axis Lighting

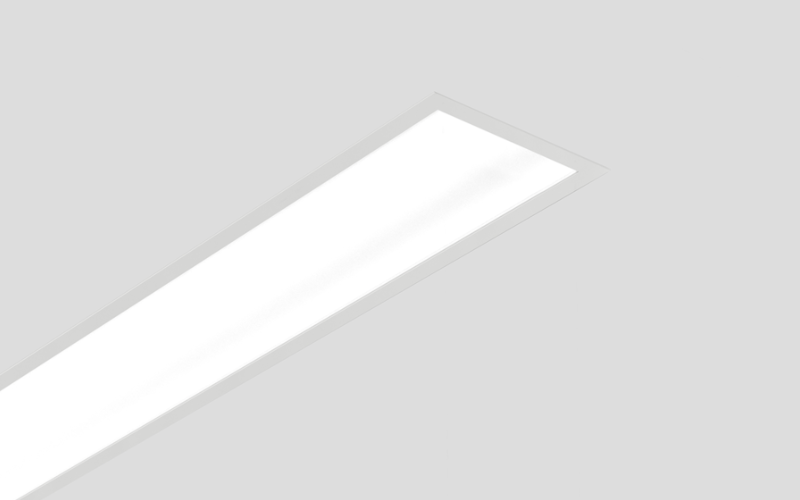

BBRLED. Beam 4 RGB+W - Recessed mount.
SPECIFICATIONS

CONFIGURATOR

Dimensions
W: 4 1/8"
L: 4 Ft5 Ft8 Ft12 FtRun length (Ft)
H: 0.25"0.5"1.5"
Light Source
LED
CCT/Color
RGBW
CRI
90
Watt^(Approx)
16.4 W/Ft
Lumens^(Approx)
1200 Lm/Ft1100 Lm/Ft
Optics
DirectGrazingNarrowGeneral DiffusedAsymmetric/WashBatwing
Adjustable
Dimming
Dim to 3-10%DMX
Controls/Network
Power/Voltage
IntegralUNV 120-277V120V277V
Integral Emergency
Lumen Maintenance
50000 h
Certificates
UL/CULNYC
Environment
Damp
Mounting Type
Ceiling RecessedDrywallTrimless DrywallT-Grid CeilingSlot T-Grid Ceiling
Housing
ICChicago Plenum
Housing Depth
3 15/16 ''

Description:

DESCRIPTION

DIMENSIONS

LIGHT SOURCE

WATT/LUMENS

POWER/CONTROLS

i You reconfigured the product. To remove this message please update you custom description.

SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.

CONFIGURATOR

Marks unavailable product configuration, refer to manufacturer’s documentation for details

BUILD CATALOG NUMBER

PRODUCT DESCRIPTION
—

Light Distribution Direct

Output Up to 1200 lm/ft

Efficacy Up to 144 lm/W

Lengths 2' - 12' Standalone & System Runs
