Axis Lighting
BBRLEDPAT. Beam 4 LED RECESSED MOUNT - REGULAR LIT CORNER PATTERNS.
 Configure
 Add to project

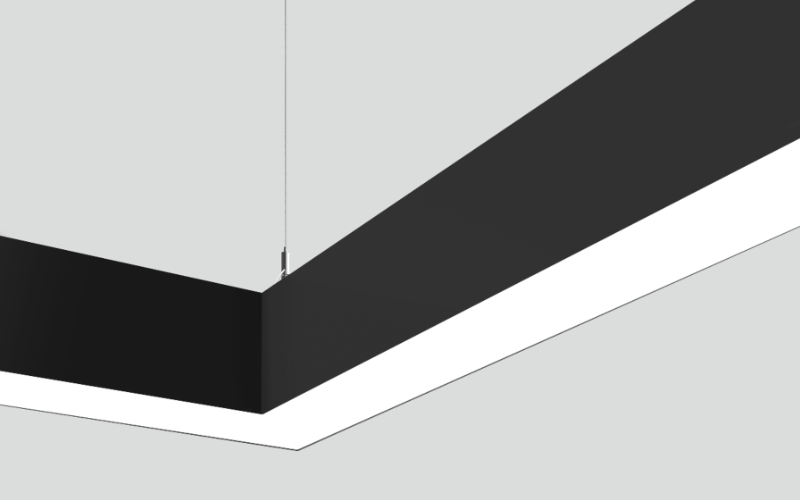

Axis Lighting. BBRLEDPAT. Beam 4 LED RECESSED MOUNT - REGULAR LIT CORNER PATTERNS.
Axis Lighting. BBRLEDPAT. Beam 4 LED RECESSED MOUNT - REGULAR LIT CORNER PATTERNS.
RESOURCES
DESCRIPTION
Light Distribution               Direct, Indirect, Direct/Indirect

Mounting                             Pendant, Surface, Recessed, Wall

Output Direct                      Up to 1200 lm/ft

Output Indirect                   Up to 1200 lm/ft

Lengths                                According to total length specified
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 4 1/8"
    L: Run length (inch)
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000KTunable White
  • CRI
    80 90
  • Watt(Approx)
    custom
  • Lumens(Approx)
    1000 Lm/Ft12000 Lm/Ftcustom
  • Optics
    DirectGeneral DiffusedAsymmetric/Wash
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Lutron EcoSystem 5 (LDE5)Xitanium SRDMX
  • Controls/Network
    EthernetWireless DimmingIntegral Sensor
  • Power/Voltage
    IntegralPoEUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CULNYCADA
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedWall RecessedDrywallTrimless DrywallT-Grid CeilingSlot T-Grid Ceiling
  • Housing
    ICChicago Plenum
  • Housing Depth
    3 15/16 ''
