Axis Lighting

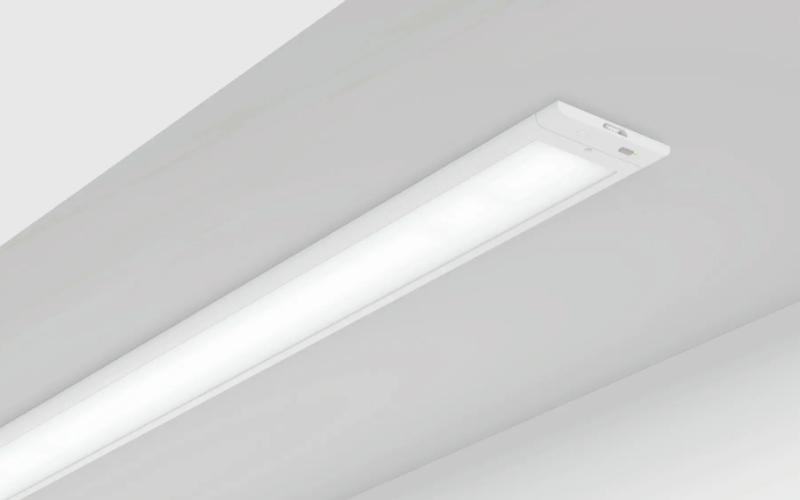

BCUC. UNDERCABINET SURFACE.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
- Wafer-thin design: only 3/8″ deep
- Six lengths available: 10”, 16”, 23”, 30”, 36”, 42”
- Four-position selectable CCTs: 2700K, 30000K, 3500K, 4000K
- Touch-free dimming supports infection control
- Available with interconnect and power cord set accessories.
- Available wireless control wall switch
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 7/8”L: 10"16"23"30"36"42"H: 3/8”
- Light SourceLED
- CCT/Color2700K3000K3500K4000KField Select CCT
- CRI90
- Watt(Approx)8.2 W/Ft
- Lumens(Approx)689 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- Dimming
- Controls/NetworkIntegral Sensor
- Power/VoltageRemoteUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULNSF
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeBCUC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
