Axis Lighting

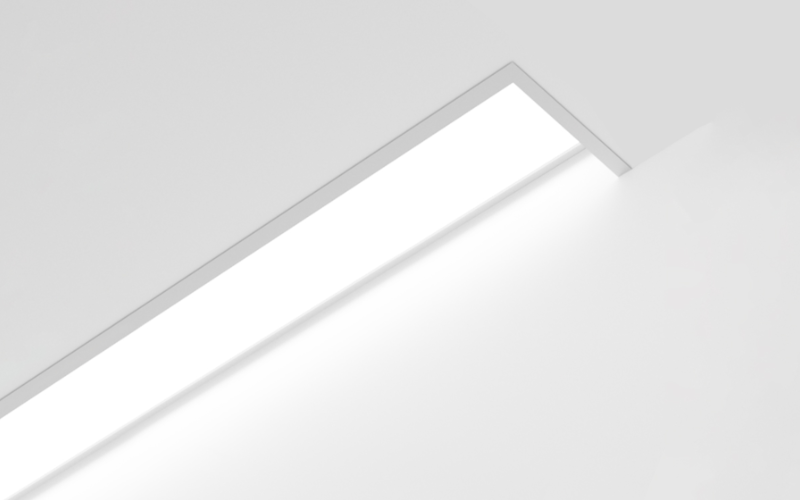

BMPRLED. Beam 3 LED PERIMETER LINEAR - RECESSED.
 Configure
 Add to project
Axis Lighting. BMPRLED. Beam 3 Recessed Perimeter.
Axis Lighting. BMPRLED. Beam 3 Recessed Perimeter.
RESOURCES
DESCRIPTION
This complete linear lighting toolbox features a streamlined linear form factor designed for maximum versatility. It is available in multiple mountings, including recessed, pendant, surface, wall, vertical and perimeter, enabling you to create cohesive designs that unite the space.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3 7/16"
    L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft9 Ft10 Ft11 Ft12 FtMore than 12 FtRun length (Ft)
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000KTunable White
  • CRI
    80 90
  • Watt(Approx)
    9.3 W/Ft9.7 W/Ftcustom
  • Lumens(Approx)
    400 Lm/Ft500 Lm/Ft1000 Lm/Ft1100 Lm/Ftcustom
  • Optics
    DirectGeneral DiffusedAsymmetric/Wash
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
  • Controls/Network
    Ethernet
  • Power/Voltage
    IntegralPoEUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CULNYC
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedDrywallT-Grid CeilingSlot T-Grid Ceiling
  • Housing
    ICChicago Plenum
  • Housing Depth
    3 15/16 ''6 ''7 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
