Axis Lighting
BMPRLEDPAT. BEAM 3 LED PERIMETER PATTERN - RECESSED.
 Configure
 Add to project

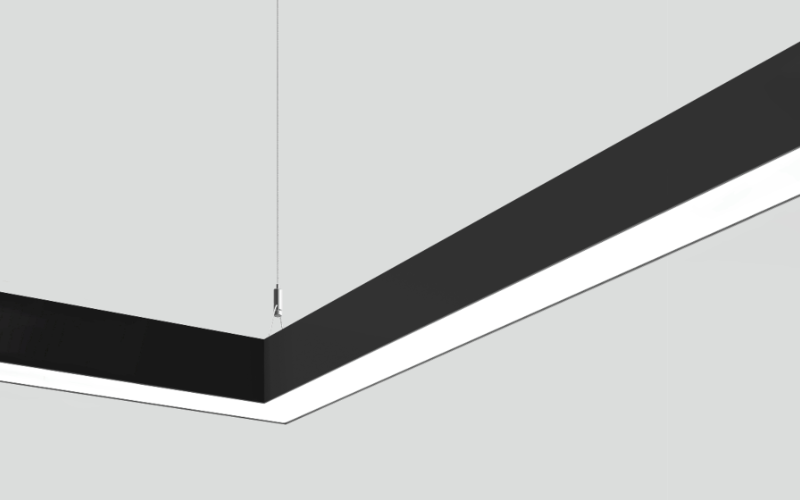

Axis Lighting. BMPRLEDPAT. BEAM 3 LED PERIMETER PATTERN - RECESSED.
Axis Lighting. BMPRLEDPAT. BEAM 3 LED PERIMETER PATTERN - RECESSED.
RESOURCES
DESCRIPTION
Light Distribution              Direct, Indirect, Direct-Indirect

Mounting                            Pendant, Recessed, Surface, Wall

Output Direct                     Up to 1100 lm/ft

Output Indirect                  Up to 1200 lm/ft

Lengths                              According to total length specified
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3 13/16"
    L: Run length (inch)
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000KTunable White
  • CRI
    80 90
  • Watt(Approx)
    9.3 W/Ft9.7 W/Ftcustom
  • Lumens(Approx)
    300 Lm/Ft750 Lm/Ft1000 Lm/Ft1100 Lm/Ftcustom
  • Optics
    DirectGeneral DiffusedAsymmetric/Wash
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
  • Controls/Network
    EthernetWireless Dimming
  • Power/Voltage
    IntegralPoEUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CULDeclare
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedDrywallT-Grid CeilingSlot T-Grid Ceiling
  • Housing
    ICChicago Plenum
  • Housing Depth
    3 15/16 ''6 ''7 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
