Axis Lighting

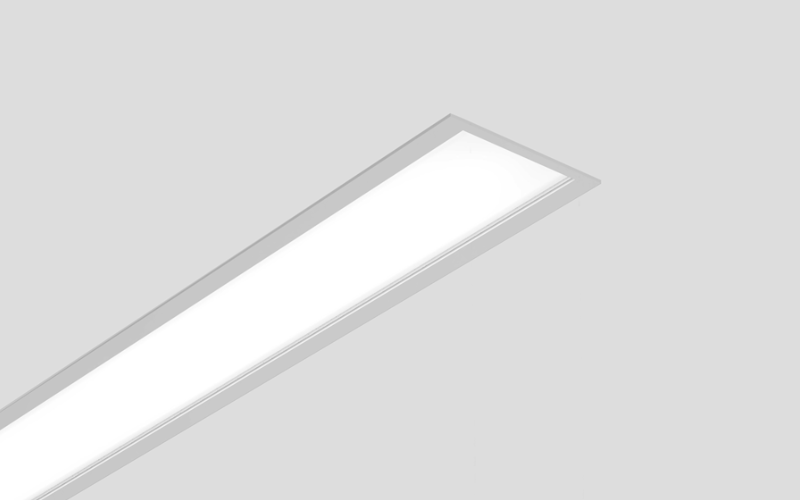

BMRLED. Beam 3 LED RECESSED - WITH StepLens OPTION.
 Configure
 Add to project
Axis Lighting. BMRLED. Beam 3 LED RECESSED - WITH StepLens OPTION.
Axis Lighting. BMRLED. Beam 3 LED RECESSED - WITH StepLens OPTION.
RESOURCES
DESCRIPTION
Light Distribution          Direct

Output                            Up to 1100 lm/ft (Beam 3 Recessed),

Output                            Up to 900 lm/ft (Beam 3 SL Recessed)

Efficacy                           Up to 131 lm/W

Lengths                          2' - 12' Standalone & System Runs
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3 13/32"
    L: 4 Ft5 Ft6 Ft8 Ft12 FtRun length (Ft)
  • Light Source
    LED
  • CCT/Color
    3000K3500K4000K
  • CRI
    80
  • Watt(Approx)
    9.3 W/Ft8.8 W/Ftcustom
  • Lumens(Approx)
    300 Lm/Ft500 Lm/Ft1000 Lm/Ft1100 Lm/Ftcustom
  • Optics
    DirectGrazingNarrowGeneral DiffusedAsymmetric/WashBatwing
  • Adjustable
  • Dimming
    Dim to 1%0-10V
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
  • Certificates
    UL/CUL
  • Environment
  • Mounting Type
    Ceiling RecessedDrywallTrimless DrywallT-Grid CeilingSlot T-Grid Ceiling
  • Housing
    ICChicago Plenum
  • Housing Depth
    3 15/16 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
