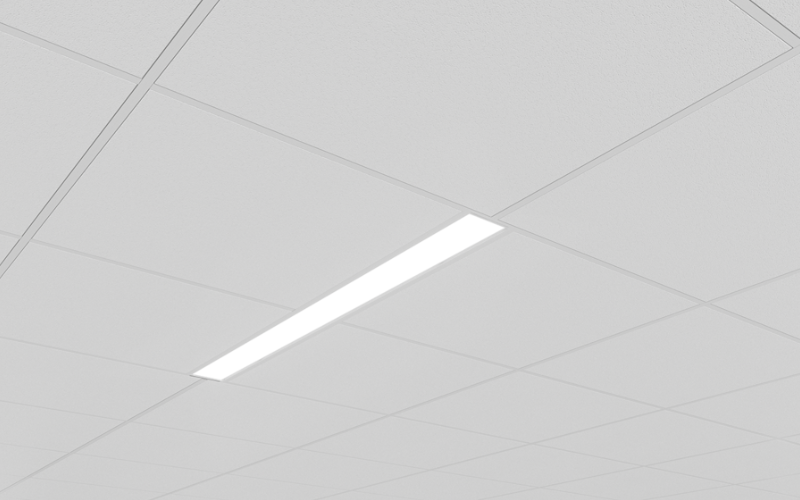

Axis LightingCLKLED. Click RECESSED MOUNT.
SPECIFICATIONSCONFIGURATOR- DimensionsW: 3 9/16"L: 2 Ft30"3 Ft4 Ft5 Ft6 Ft84"8 FtRun length (Ft)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)4 W/Ft4.9 W/Ft6.2 W/Ft7.5 W/Ft7.7 W/Ftcustom
- Lumens(Approx)400 Lm/Ft500 Lm/Ft630 Lm/Ft750 Lm/Ft900 Lm/Ftcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
- Controls/NetworkEthernetEnlightedWireless DimmingIntegral Sensor
- Power/VoltageIntegralPoEUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid CeilingSlot T-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth1 9/16 ''
DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.CONFIGURATORMarks unavailable product configuration, refer to manufacturer’s documentation for details__-__-__-__-__-__-__-__-__-__-__-__-__-__-__
BUILD CATALOG NUMBERSAVE CONFIGURATION CANCEL CHANGES—Qty:DOWNLOAD CONFIGURATION- PRODUCT ID
-
CLKLED Click LED! CLKLED
- NOM. LUMENS/FT
-
400 lm/ft - Minimum, 900 lm/ft - Maximum!
- Outputs between listed min and max are available. Consult factory for outputs outside of the listed range. Consult factory for max output with BIOS. 1000 lumens, only for louver. Consult factory for outputs outside of the listed range. Consult factory for max output with BIOS
- CRI
-
80 80 CRI! 80
-
90 90 CRI! 90
- COLOR TEMP
-
27 2700 K! 27
-
30 3000 K! 30
-
35 3500 K! 35
-
40 4000 K! 40
- SHIELDING
-
SO Spotless lens! SO
- Using spotless lens
- LENGTH (FT)
-
2 2’ *! 2
-
2.5 2.5’ **! 2.5
-
3 3'! 3
-
4 4’ *! 4
-
5 5’ **! 5
-
6 6’ *! 6
-
7.5 7.5’ **! 7.5
-
8 8’ *! 8
-
S() system run! S()
- * Match to 24” T-bar spacing ** Match to 30” T-bar spacing Multiple of 10' match both T-bar spacing
- FINISH
-
W white! W
-
BLK black! BLK
-
C() custom! C()
- VOLTAGE
-
120 120 V! 120
-
277 277 V! 277
-
347 347 V! 347
-
UNV universal! UNV
-
DC low voltage*! DC
- * Only available with POE drivers.
- DRIVER
-
DP dimming (0-10V) 1%! DP
-
LDE1 Hi-lume 1% EcoSystem with Soft-on, Fade-to-Black! LDE1
-
BI bi-level dimming! BI
-
DALI Digital Addressable Lighting Interface! DALI
-
DMX Digital Multiplex! DMX
-
Xitanium SR For wireless sensor! Xitanium SR
-
POE() Power over Ethernet POE drivers! POE()
- CIRCUITS
-
1 1 circuit! 1
-
2 2 circuits! 2
-
E() emergency circuit *! E()
-
NL() night light circuit *! NL()
-
GTD() generator transfer device*! GTD()
- * Specify quantity
- MOUNTING OPTIONS
-
TG9 tegular 9/16"! TG9
-
ST screw slot t-bar! ST
-
DS drywall spackle flange *! DS
-
AC Armstrong ceiling and Direct Light Coves **! AC
- * See page 4 for more information. ** For more information, see page 3.
- BATTERY (OPT.)
-
B() battery pack integral! B()
- For 2.5' or less - remote only Please consult factory Not available with 347V
- OTHER (OPTIONAL)
-
FW flex whip (6’ std)! FW
-
CP Chicago plenum! CP
- * Requires 120V or 277V
- REMOTE CONTROLS (OPTIONAL)
-
DS() daylight sensor! DS()
-
OS() occupancy sensor! OS()
-
DOS() daylight & occupancy sensor! DOS()
-
ENR() Enlighted remote! ENR()
-
WC() wireless control dimming! WC()
- Remote only; Please consult factory See integrated controls guide for more details. Consult factory for Tunable White.
- CUSTOM (OPTIONAL)
-
C() custom! C()
- Please specify
PRODUCT DESCRIPTION—The product of an exclusive Axis-Armstrong® innovation partnership, Click is the first true install-from-below, shallow luminaire and is compatible with closed grids, drywall ceilings and Armstrong on-center ceiling systems.MORE DESCRIPTION
