Axis Lighting

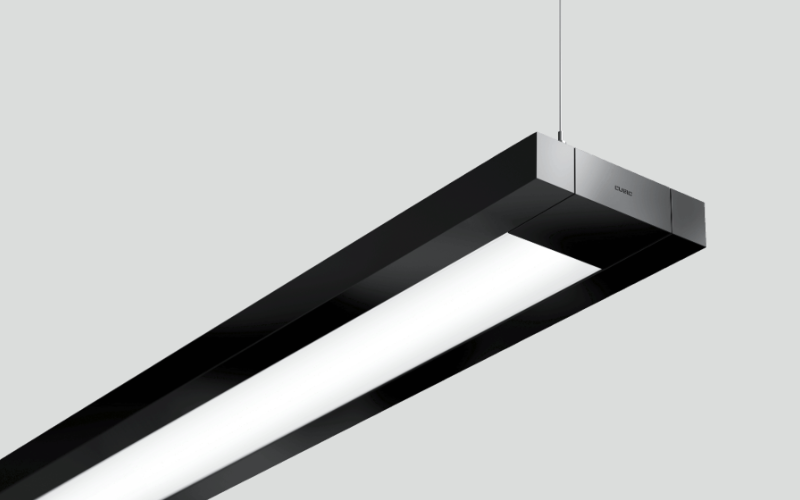

CUBLED. Cubic SurroundLite Pendant.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Cubic SurroundLite is only available in a narrow version. Exclusive SurroundLite optics produce balanced brightness, sending wide planes of light in all directions
Installation and maintenance are made easy with toolless lens mounting and access to all components from below.
Installation and maintenance are made easy with toolless lens mounting and access to all components from below.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6"L: 2 Ft4 Ft8 Ft12 FtRun length (Ft)H: 2 1/8"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80 90
- Watt(Approx)9.6 W/Ft8.7 W/Ft12.1 W/Ft11.15 W/Ft12.9 W/Ft12.7 W/Ftcustom
- Lumens(Approx)800 Lm/Ft1000 Lm/Ftcustom
- OpticsSemi-IndirectBatwingBatwing Indirect/General Direct
- Adjustable
- DimmingDim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
- Controls/NetworkEthernetEnlightedWireless DimmingIntegral Sensor
- Power/VoltageIntegralPoEUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCUBLEDP
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
