Axis Lighting
DIALED. Dia 1x4 LED RECESSED T-Bar & Drywall.
 Configure
 Add to project

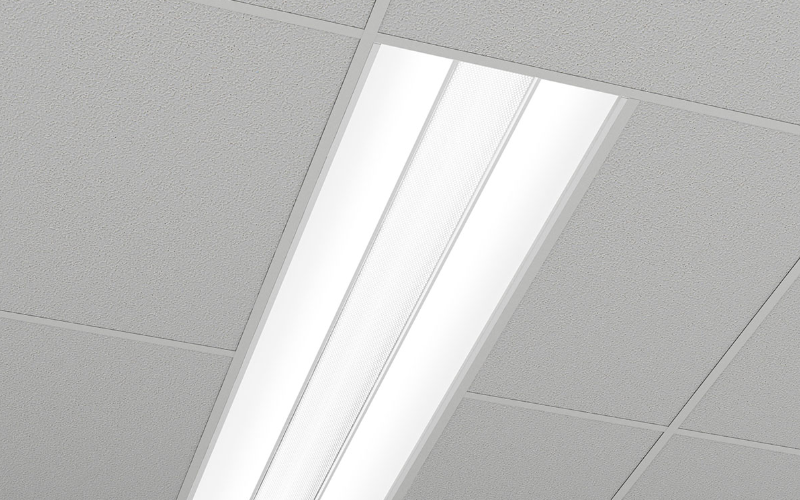

Axis Lighting. DIALED. Dia 1x4 LED RECESSED T-Bar & Drywall.

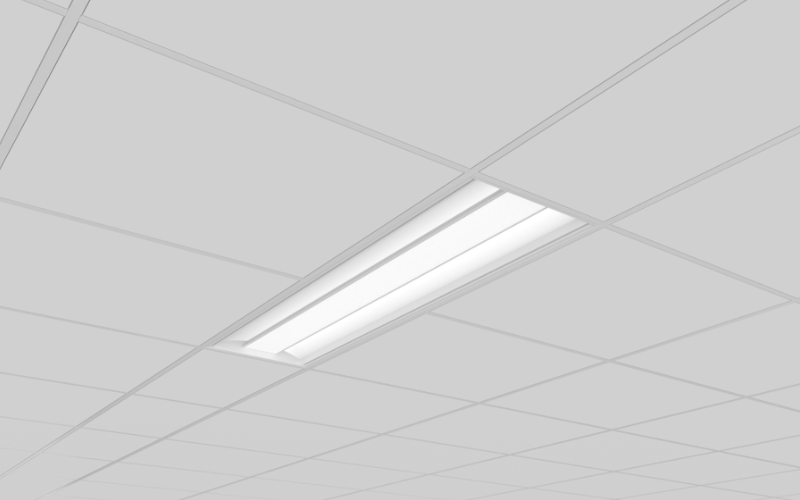

Axis Lighting. DIALED. Dia 1x4 LED RECESSED T-Bar & Drywall.

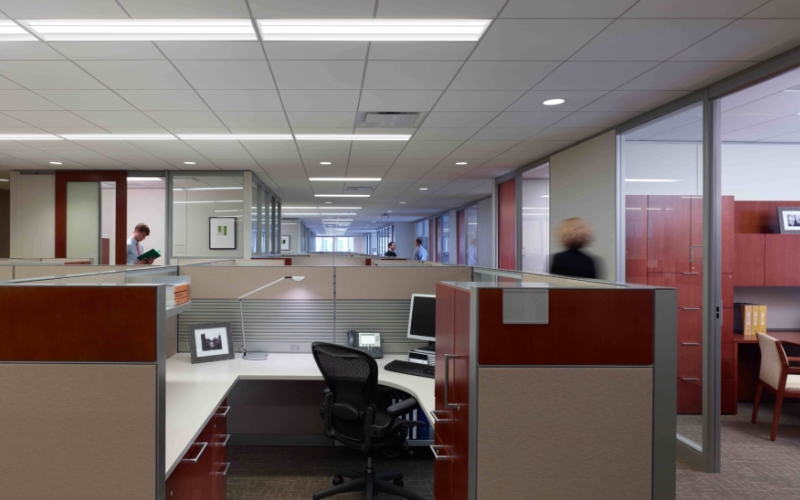

Axis Lighting. DIALED. Dia 1x4 LED RECESSED T-Bar & Drywall.
Axis Lighting. DIALED. Dia 1x4 LED RECESSED T-Bar & Drywall.
RESOURCES
DESCRIPTION
Mounting                         Recessed, Surface

Light Distribution            Direct

Output                              Up to 6800 lm

Efficacy                             Up to 103 lm/W
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1 Ft
    L: 4 Ft
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000KTunable White
  • CRI
    80 90
  • Watt(Approx)
    22.76 W41.17 W53.46 Wcustom
  • Lumens(Approx)
    1300 Lm2400 Lm4000 Lm5000 Lm6000 Lm6800 Lmcustom
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
  • Controls/Network
    EthernetWireless DimmingIntegral Sensor
  • Power/Voltage
    IntegralPoEUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CULNYCDLC*
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedDrywallT-Grid CeilingTech ZoneSlot T-Grid Ceiling
  • Housing
    ICChicago PlenumAir Return
  • Housing Depth
    3 7/8 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
