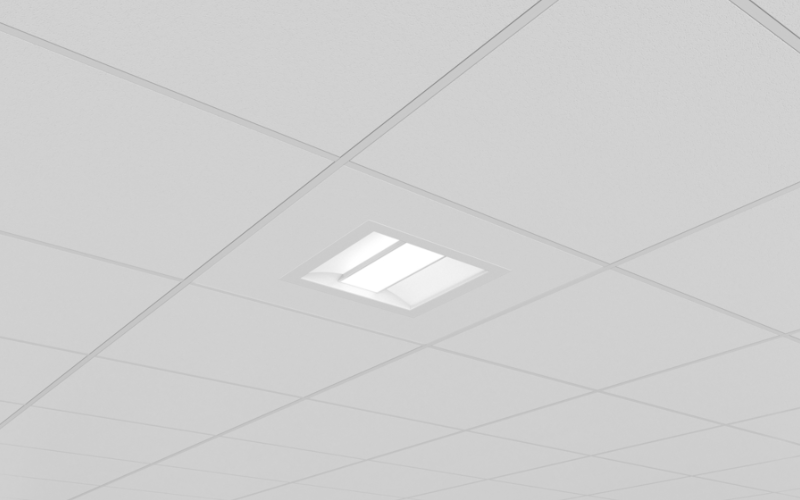

DIALED. Dia 1x1 LED RECESSED T-Bar & Drywall.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

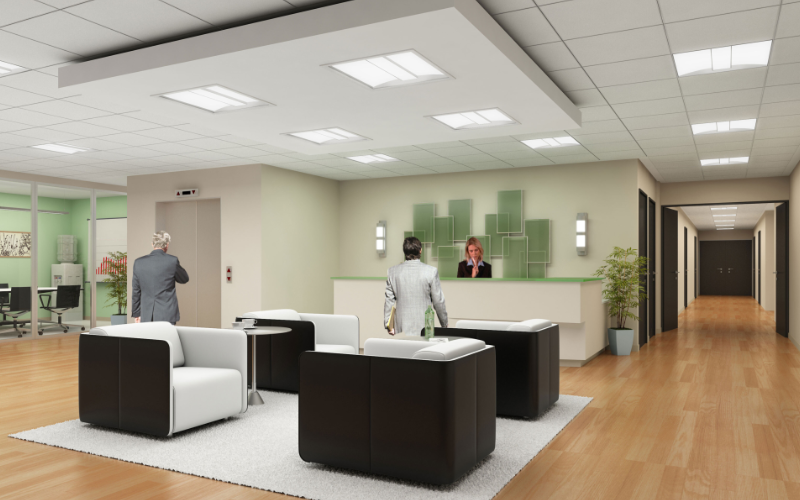

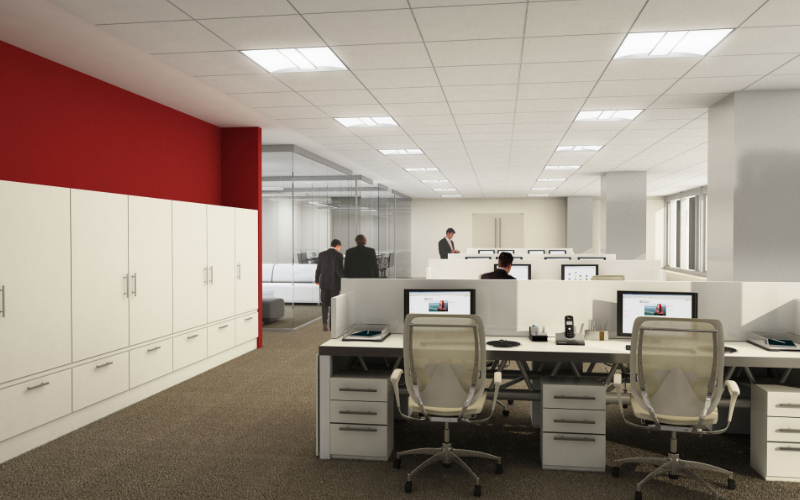

Visual comfort, energy efficiency and no pixilation on the lens make the slender design of Dia LED more appealing than ever. Dia LED creates a clean ceiling line and a distinctive, architectural esthetic that integrates well into contemporary spaces.
Most Dia LED models meet the low power density requirements of sustainable lighting projects, including IESNA RP-1-04 guidelines. Optional integral controls options provide additional energy savings.
Luminaires come with air return option and time-saving features, such as a hinged center optic component and driver covers. The low-profile design (only 3.875” deep) is well-suited to shallow plenums.
Most Dia LED models meet the low power density requirements of sustainable lighting projects, including IESNA RP-1-04 guidelines. Optional integral controls options provide additional energy savings.
Luminaires come with air return option and time-saving features, such as a hinged center optic component and driver covers. The low-profile design (only 3.875” deep) is well-suited to shallow plenums.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 FtL: 1 Ft
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable White
- CRI80 90
- Watt(Approx)11.45 W12.88 W15.77 Wcustom
- Lumens(Approx)600 Lm900 Lm1000 Lm1200 Lm1500 Lm1700 Lmcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
- Controls/NetworkEthernetEnlightedWireless DimmingIntegral Sensor
- Power/VoltageIntegralPoEUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULNYCDLC*
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywall
- HousingICChicago PlenumAir Return
- Housing Depth3 7/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeDIALED11R
