Axis Lighting

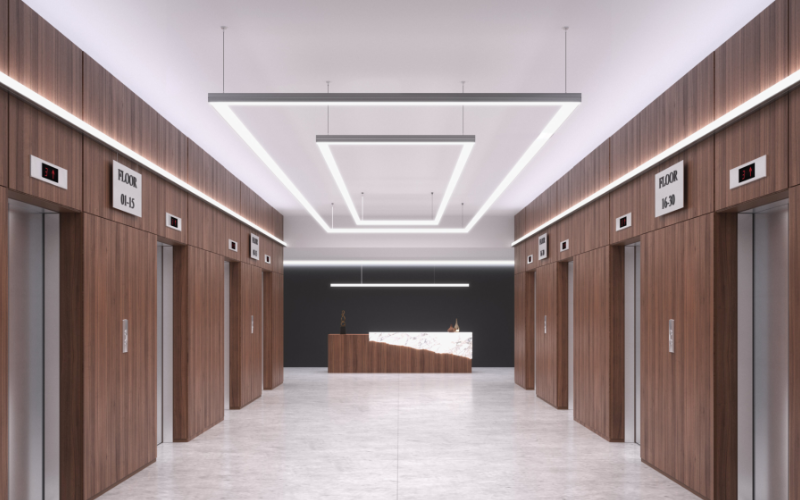

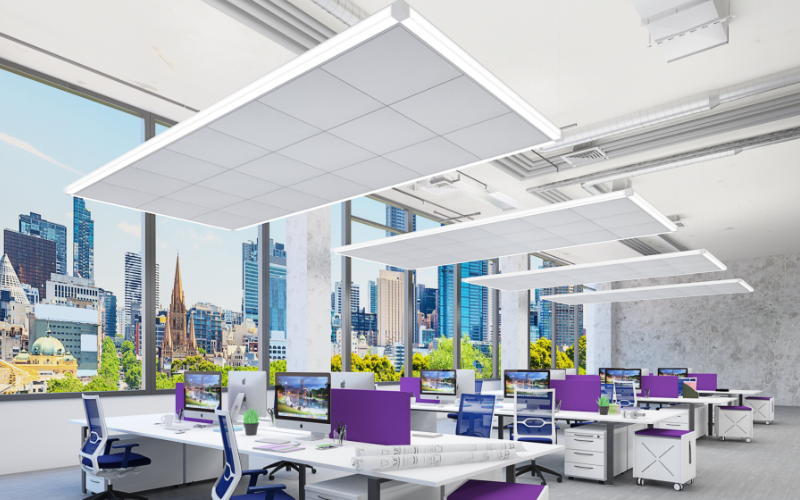

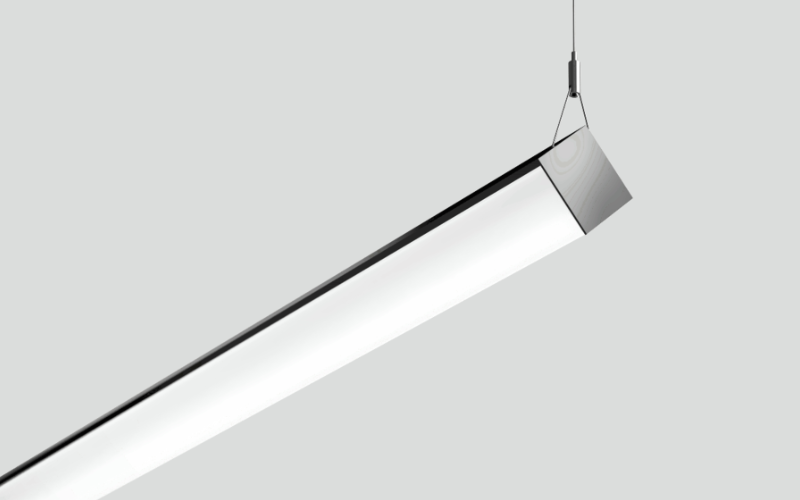

ED2. Edge 2 PENDANT MOUNT.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Light Distribution Direct, Indirect
Output Direct Up to 1000 lm/ft
Output Indirect Up to 1100 lm/ft
Efficacy Up to 146 lm/W
Segments 2’, 3’, 4’, 5', 6’, 7', 8’, 12’ lengths & System Run
Output Direct Up to 1000 lm/ft
Output Indirect Up to 1100 lm/ft
Efficacy Up to 146 lm/W
Segments 2’, 3’, 4’, 5', 6’, 7', 8’, 12’ lengths & System Run
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 1/2"L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft12 FtRun length (Ft)H: 2 1/2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)7 W7.7 W
- Lumens(Approx)250 Lm/Ft1000 Lm/Ft1100 Lm/Ftcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
- Controls/NetworkEthernet
- Power/VoltageIntegralPoEUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeED2
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
