Axis Lighting
EL45. ELLE 45° Ceiling Mount.
 Configure
 Add to project

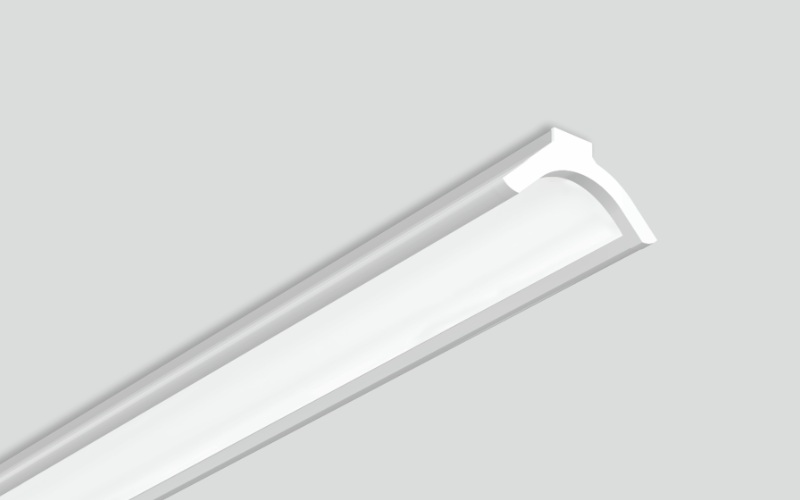

Axis Lighting. EL45. ELLE 45° Ceiling Mount.
Axis Lighting. EL45. ELLE 45° Ceiling Mount.
RESOURCES
DESCRIPTION
Light Distribution              Direct

Output                                Up to 1000 lm/ft

Efficacy                               up to 99 lm/W

Segments                          2’ to 8’ lengths (6” increments) & System Run
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2 23/32"5 7/16”
    L: 2 Ft8 FtRun length (Ft)
    H: 2 23/32”5 7/16"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000KTunable White
  • CRI
    90
  • Watt(Approx)
    3.5 W/Ft10 W/Ft7.5 W/Ftcustom
  • Lumens(Approx)
    350 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
  • Controls/Network
    Lutron®EthernetIntegral Sensor
  • Power/Voltage
    PoEUNV 120-277V120V277V347V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CULNSF
  • Environment
    Antimicrobial FinishDampHealthcare General
  • Mounting Type
    Ceiling SurfaceWall Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
