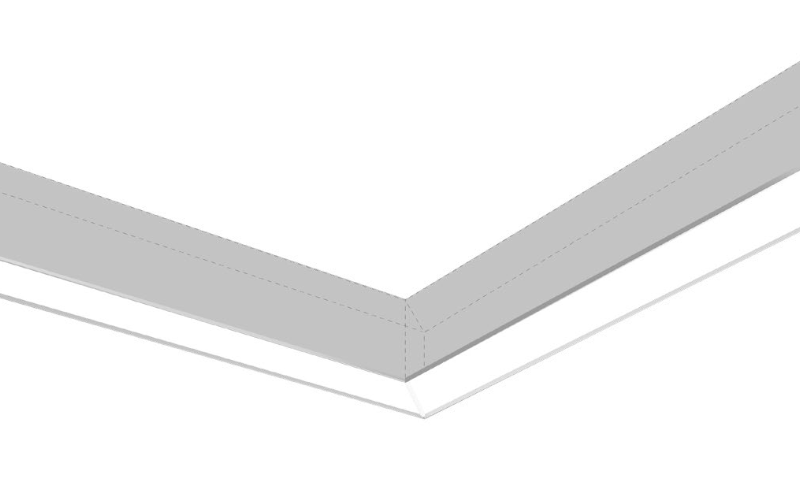

EX2RPAT. Extend 2 Patterns Recessed mount.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Mounting
Pendant, Surface, Recessed, Wall
Lengths
According to total length specified
Output
Up to 1000 lm/ft
Efficacy
Up to 103 lm/W
Pendant, Surface, Recessed, Wall
Lengths
According to total length specified
Output
Up to 1000 lm/ft
Efficacy
Up to 103 lm/W
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 5/8"L: Run length (Ft)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)9.8 W/Ftcustom
- Lumens(Approx)300-1000 Lm/Ftcustom
- OpticsDirectGrazingGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentIP66Natatorium
- Mounting TypeCeiling RecessedDrywallTrimless Drywall
- HousingIC
- Housing Depth2 13/16 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeEX2RPAT
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
