Axis Lighting

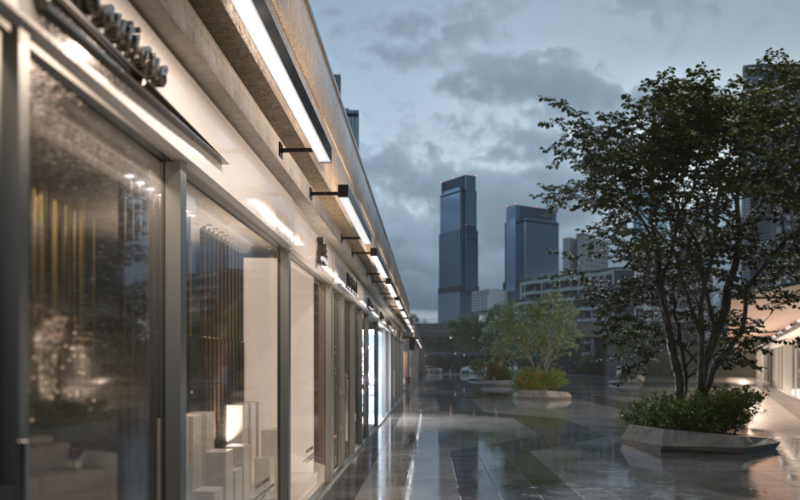

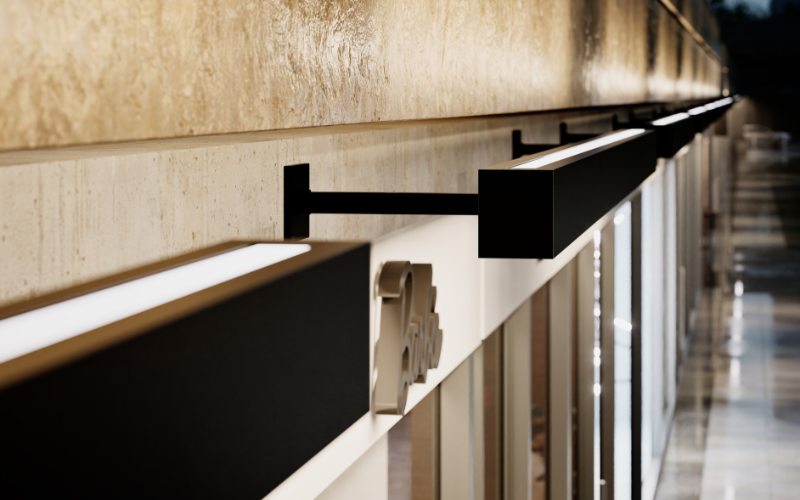

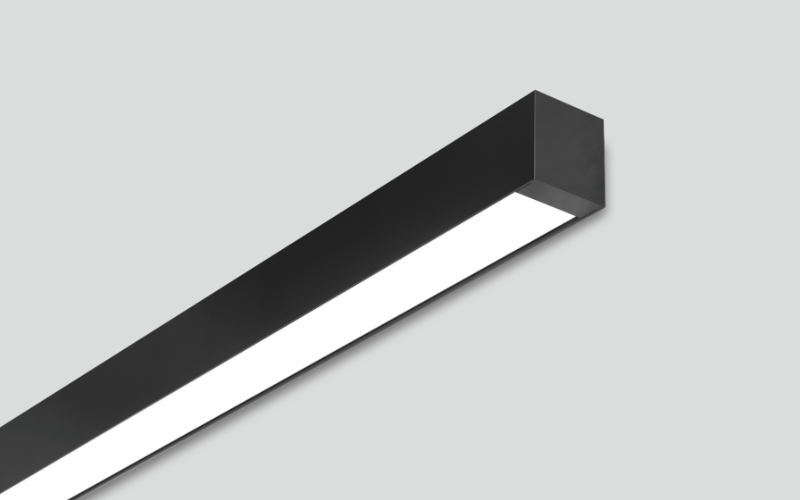

EX2WD. Extend 2 Wall mount - Direct.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Light Distribution Direct, Indirect, Direct/Indirect
Output Direct: Up to 1000 lm/ft
Indirect: Up to 1400 lm/ft
Efficacy Up to 141 lm/W
Lengths 2’ – 12’ Standalone & System Runs
Output Direct: Up to 1000 lm/ft
Indirect: Up to 1400 lm/ft
Efficacy Up to 141 lm/W
Lengths 2’ – 12’ Standalone & System Runs
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 1/2"L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft12 FtRun length (Ft)H: 2 13/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)8.5 W/Ft7.2 W/Ft9.8 W/Ftcustom
- Lumens(Approx)300 Lm/Ft750 Lm/Ft1000 Lm/Ft1200 Lm/Ftcustom
- OpticsDirectIndirectDirect/IndirectGrazingGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentIP66
- Mounting TypeWall SurfaceWall Arm/Cantilever
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeEX2WD
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
