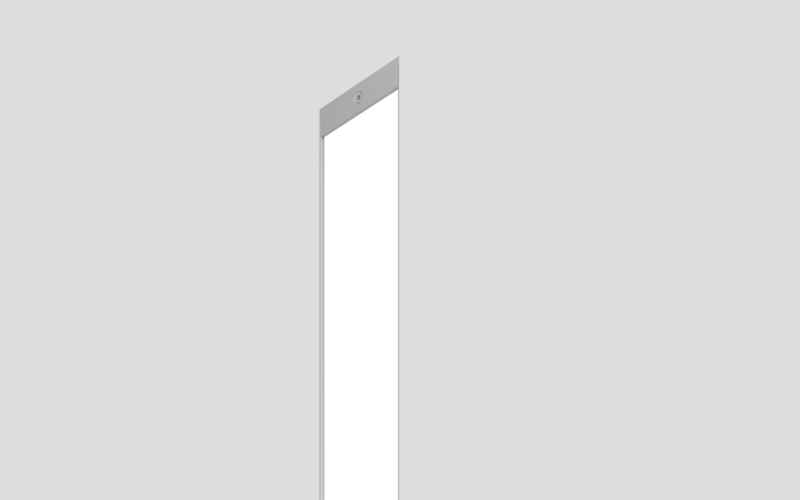

EX4R. Extend 4 Vertical Recessed Mount.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Mounting
Surface, Recessed
Light Distribution
Direct
Output
Up to 1200 lm/ft
Efficacy
Up to 111 lm/W
Lengths
2’ – 8’ Standalone & System Runs
Surface, Recessed
Light Distribution
Direct
Output
Up to 1200 lm/ft
Efficacy
Up to 111 lm/W
Lengths
2’ – 8’ Standalone & System Runs
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 1/4"5 1/4"4 29/32"L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 FtRun length (Ft)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)10.1 W/Ftcustom
- Lumens(Approx)400-1200 Lm/Ftcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentIP66Natatorium
- Mounting TypeWall Recessed
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeEX4RV
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
