Axis Lighting

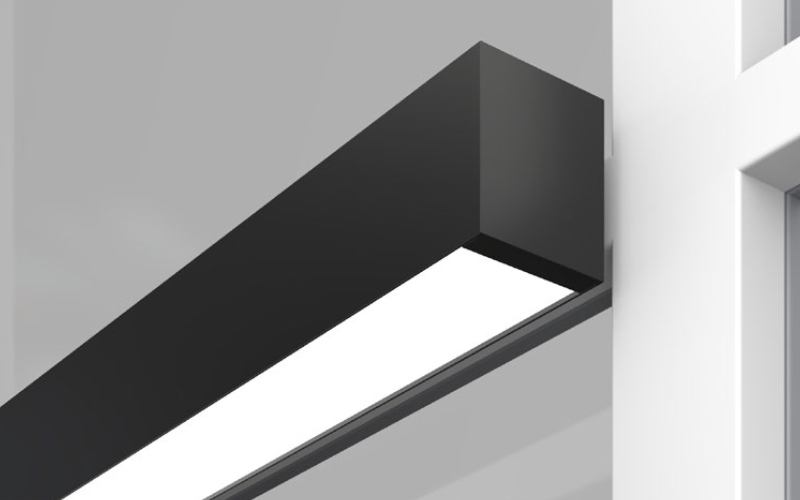

EX4W. Extend 4 RGB + W Mullion mount.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Light Distribution
Direct, Indirect, Direct/Indirect
Output
Direct: Up to 1200 lm/ft
Indirect: Up to 1400 lm/ft
Efficacy
Up to 141 lm/W
Lengths
2’ – 12’ Standalone & System Runs
Direct, Indirect, Direct/Indirect
Output
Direct: Up to 1200 lm/ft
Indirect: Up to 1400 lm/ft
Efficacy
Up to 141 lm/W
Lengths
2’ – 12’ Standalone & System Runs
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 1/8"L: 4 Ft5 Ft6 Ft7 Ft8 Ft12 FtRun length (Ft)H: 4 15/16"
- Light SourceLED
- CCT/ColorRGBW
- CRI90
- Watt(Approx)16.4 W/Ft
- Lumens(Approx)1450 Lm/Ft1100 Lm/Ft
- OpticsDirectIndirectDirect/IndirectGrazingGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%DMX/RDM
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentIP66Natatorium
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeEX4W-MUL-RGBW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
