Axis Lighting

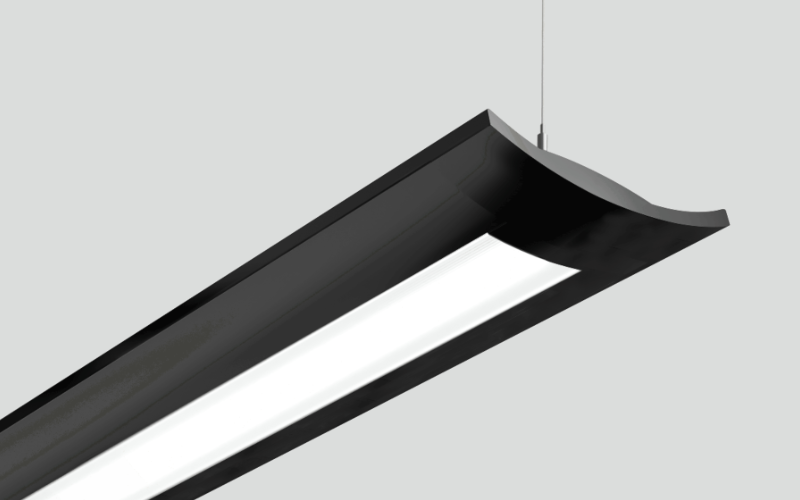

LTLED. LT SurroundLite Pendant.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Light Distribution Semi-Direct, Semi - Indirect
Output Up to 1000 lm/ft
Efficacy Up to 84 lm/W
Segments 2’, 3’, 4’, 8’, 12’ lengths & System Run
Output Up to 1000 lm/ft
Efficacy Up to 84 lm/W
Segments 2’, 3’, 4’, 8’, 12’ lengths & System Run
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 9 1/4"L: 2 Ft4 Ft8 Ft12 FtRun length (Ft)H: 2 1/2"
- Light SourceLED
- CCT/Color3000K3500K4000KTunable White
- CRI80 90
- Watt(Approx)10.06 W/Ft12.78 W/Ftcustom
- Lumens(Approx)800 Lm/Ft1000 Lm/Ftcustom
- OpticsIndirectSemi-directSemi-IndirectBatwing
- Adjustable
- DimmingDim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRLutron T-Series (PSQ0)DMX
- Controls/NetworkEthernetWireless DimmingIntegral Sensor
- Power/VoltageIntegralPoEUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULDLC*
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLTPLED
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
