Axis Lighting

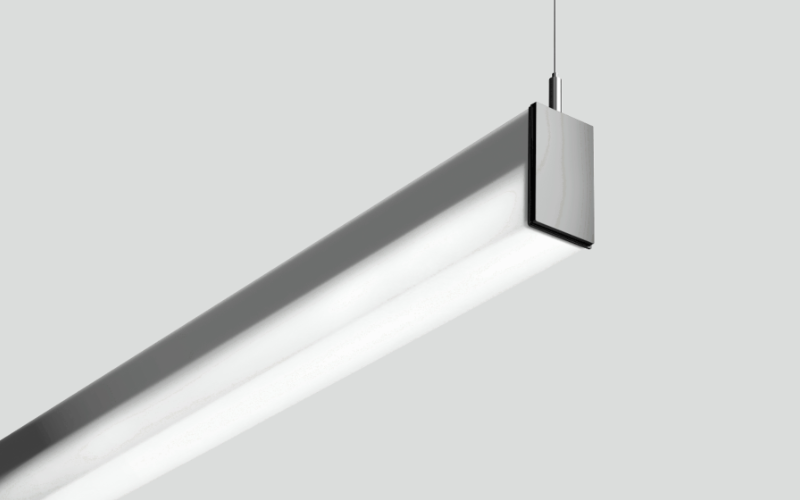

MBLED. Mini Box LED PENDANT MOUNT.
 Configure
 Add to project
Axis Lighting. MBLED. Mini Box Pendant.
Axis Lighting. MBLED. Mini Box Pendant.
RESOURCES
DESCRIPTION
Highly versatile, Mini Box can be used effectively in many different applications. Its soft, diffuse general illumination lends itself to creating distinctive LED lighting designs.

Constructed of extruded aluminum with two die-cast end cap options, Mini Box is suitable for individual applications and continuous runs. Available in pendant, ceiling and wall mountings, with a wide range of electrical options.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2 3/8"
    L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft9 Ft10 Ft11 Ft12 FtMore than 12 FtRun length (Ft)
    H: 3 7/8"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000KTunable White
  • CRI
    80 90
  • Watt(Approx)
    4.54 W/Ft5.48 W/Ft7.2 W/Ft9 W/Ftcustom
  • Lumens(Approx)
    500 Lm/Ft600 Lm/Ft800 Lm/Ft1000 Lm/Ftcustom
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
  • Controls/Network
    EthernetEnlightedWireless DimmingIntegral Sensor
  • Power/Voltage
    IntegralPoEUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CUL
  • Environment
    Damp
  • Mounting Type
    Pendant
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
