Axis Lighting

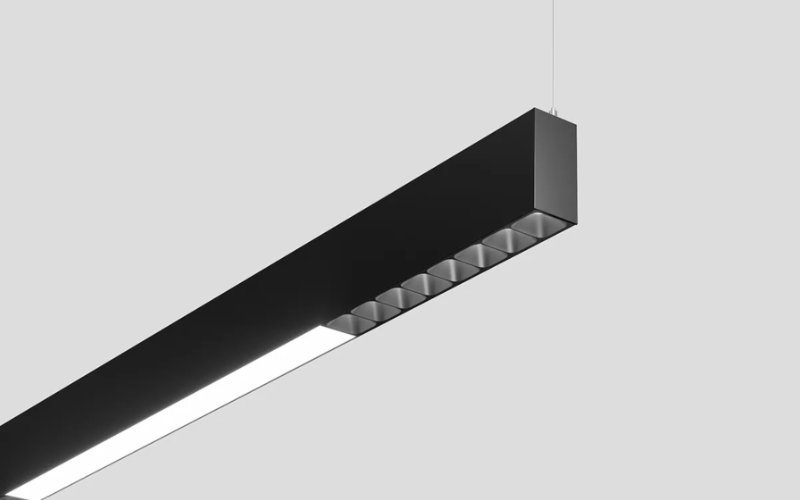

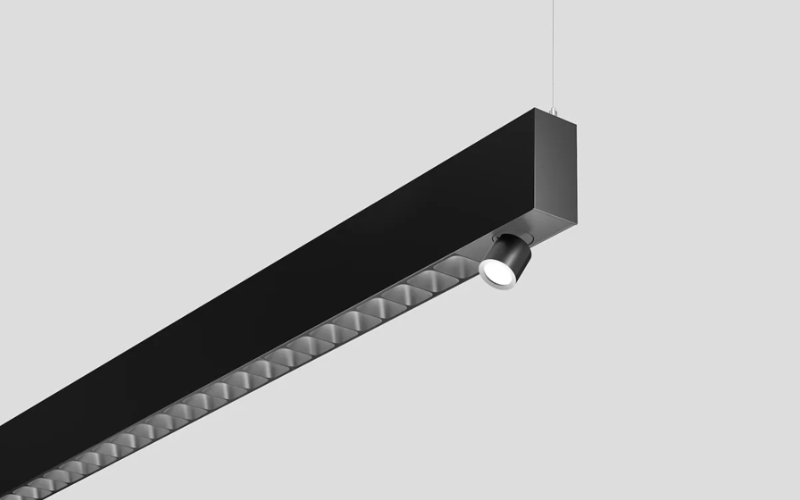

SCDIMLO/SCDMLO. Sculpt MikroLite PENDANT WITH MIKROLITE OPTION ONLY.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Mikrolite 8 cell, 2 cell, 1 cell
Output Up to 1000 lm/ft
Efficacy Up to 115 lm/W
Light Distribution Direct, Indirect, Direct/Indirect
Lengths 2ft - 12ft standalone & System Runs
Optics Soft Beam - Reflector
Sharp Beam - TIR
Output Up to 1000 lm/ft
Efficacy Up to 115 lm/W
Light Distribution Direct, Indirect, Direct/Indirect
Lengths 2ft - 12ft standalone & System Runs
Optics Soft Beam - Reflector
Sharp Beam - TIR
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 3/4"L: Run length (Ft)H: 3"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)10 W/Ftcustom
- Lumens(Approx)300 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
- OpticsDirectDirect/IndirectMediumFloodWide FloodGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
- Controls/NetworkEthernetWireless DimmingIntegral Sensor
- Power/VoltageIntegralPoEUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULDLC*
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSCDIMLO
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
