Axis Lighting
SCDIPAT. Sculpt Pendant Mount - Regular Lit Corner Patterns.
 Configure
 Add to project

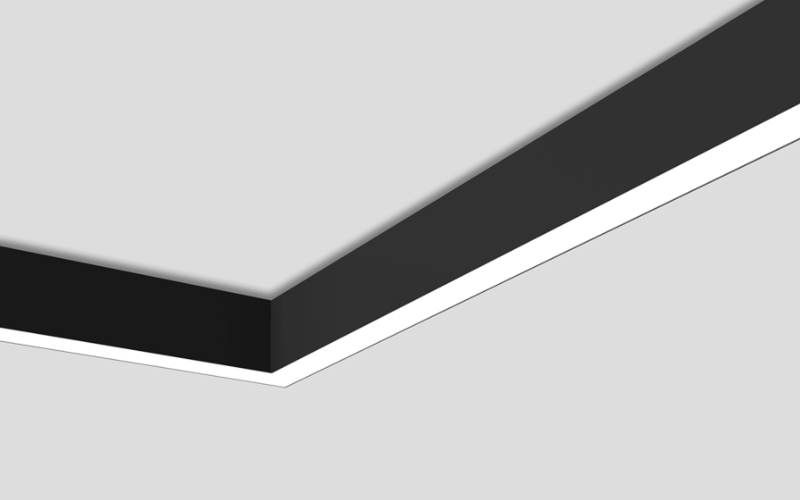

Axis Lighting. SCDIPAT. Sculpt Pendant Mount - Regular Lit Corner Patterns.
Axis Lighting. SCDIPAT. Sculpt Pendant Mount - Regular Lit Corner Patterns.
RESOURCES
DESCRIPTION
Mounting                  Pendant, Recessed, Surface, Wall

Output                       Up to 1000 lm/ft

Efficacy                      Up to 122 lm/W

Lengths                     According to total length specified
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1 3/4"
    L: Run length (Ft)
    H: 33 1/2"
  • Light Source
    LED
  • CCT/Color
    3000K3500K4000K
  • CRI
    80
  • Watt(Approx)
  • Lumens(Approx)
    300 Lm/Ft500 Lm/Ft400 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
  • Optics
    Direct/IndirectGeneral DiffusedAsymmetric/Wash
  • Adjustable
  • Dimming
    Dim to 1%0-10V
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V120V277V347V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CUL
  • Environment
    Damp
  • Mounting Type
    Pendant
  • Housing
  • Housing Depth
