Axis Lighting

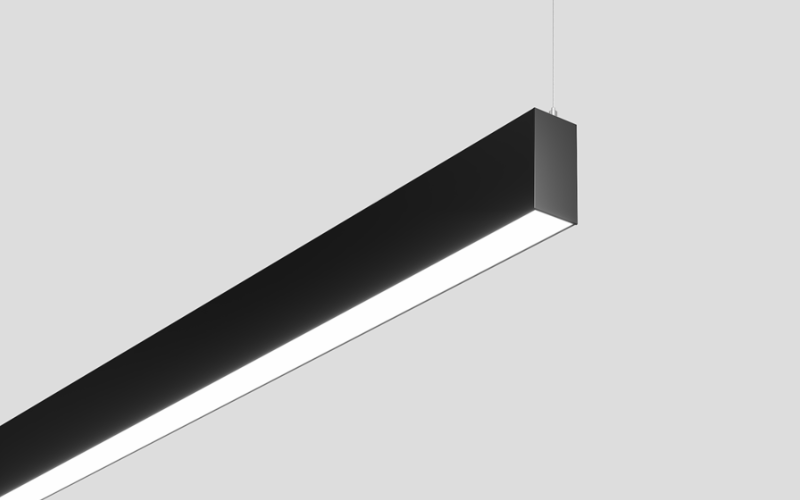

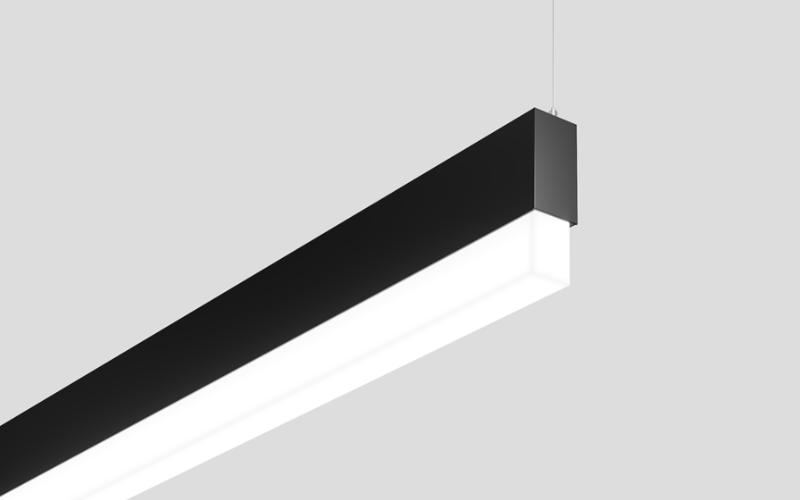

SCDLAC. Sculpt Pendant Direct - with Lens and Accent Options.
 Configure
 Add to project
Axis Lighting. SCDLAC. Sculpt Pendant Direct - with Lens and Accent Options.
Axis Lighting. SCDLAC. Sculpt Pendant Direct - with Lens and Accent Options.
Axis Lighting. SCDLAC. Sculpt Pendant Direct - with Lens and Accent Options.
Axis Lighting. SCDLAC. Sculpt Pendant Direct - with Lens and Accent Options.
RESOURCES
DESCRIPTION
Light Distribution          Direct, Indirect, Direct/Indirect

Output Direct                Up to 500 lm/ft

Output Indirect             Up to 1000 lm/ft

Efficacy                          Up to 122 lm/W

Lengths                         2' - 12' Standalone & System Runs
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1 3/4"
    L: Run length (Ft)
    H: 3 1/32"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000KTunable White
  • CRI
    80 90
  • Watt(Approx)
    custom
  • Lumens(Approx)
    300 Lm/Ft900 Lm/Ft1000 Lm/Ftcustom
  • Optics
    DirectGeneral DiffusedAsymmetric/Wash
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Mark 10Xitanium SRLutron T-Series (PSQ0)DMX
  • Controls/Network
    Ethernet
  • Power/Voltage
    IntegralPoEUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CUL
  • Environment
    Damp
  • Mounting Type
    Pendant
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
