Axis Lighting

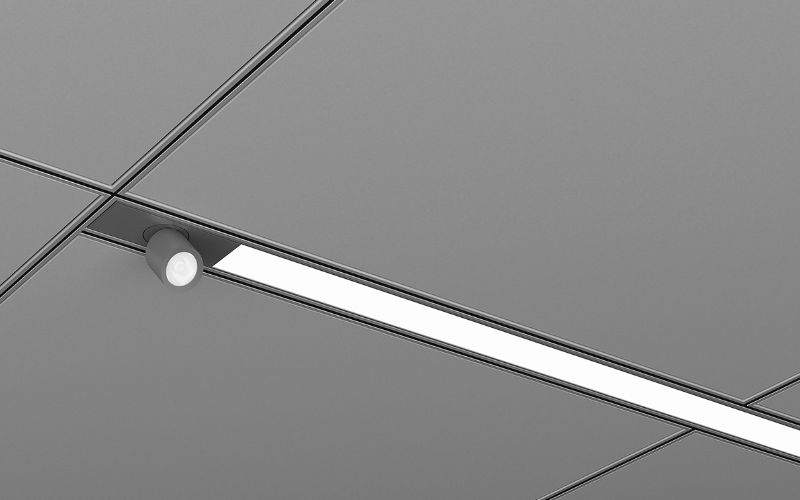

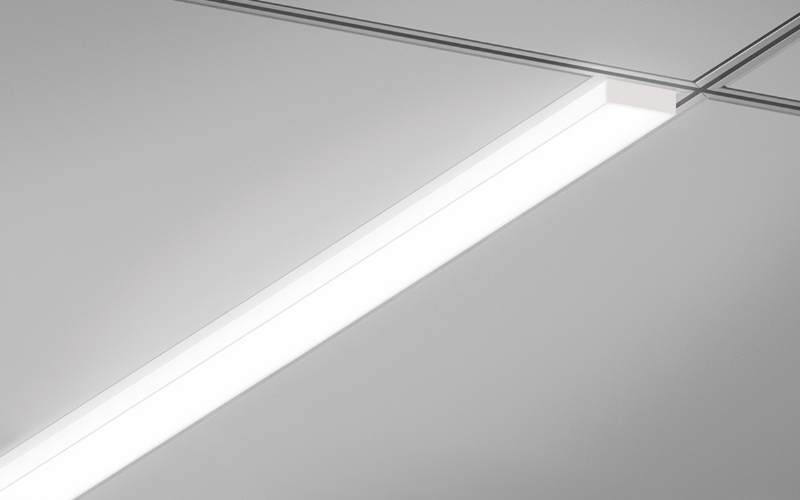

SCRLAC. SCULPT RECESSED - WITH LENS AND ACCENT OPTIONS.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Geometric Lighting is an exclusive Axis innovation that uses timeless forms to create an infinite number of lighting configurations. This new level of creative expression is enabled by Sculpt, one of Axis’s most flexible linear systems.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 1/4"L: 2 FtRun length (Ft)H: 0.5"2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)
- Lumens(Approx)300 Lm/Ft500 Lm/Ft750 Lm/Ft900 Lm/Ft1000 Lm/Ft
- OpticsDirectGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Mark 10Xitanium SRLutron T-Series (PSQ0)DMX
- Controls/NetworkEthernet
- Power/VoltageIntegralPoEUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid CeilingSlot T-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth3 1/32 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSCRLAC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
