SCRMLO. Sculpt MikroLite RECESSED WITH MIKROLITE OPTION ONLY. by Axis Lighting

SCRMLO

Lead time Cost —

SPEC SHEET WHERE TO BUY MANUFACTURER'S PAGE

Axis Lighting

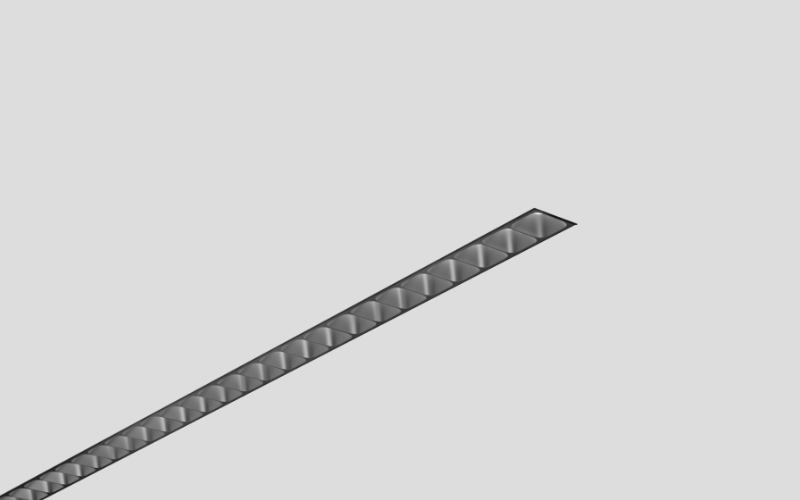

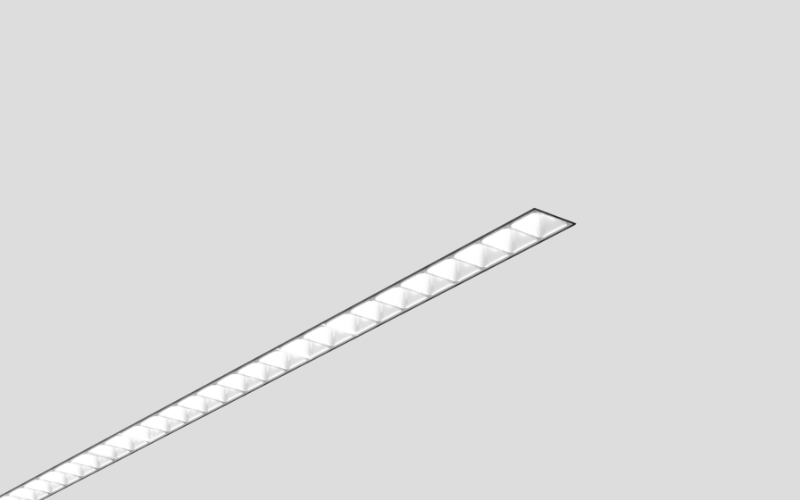

SCRMLO. Sculpt MikroLite RECESSED WITH MIKROLITE OPTION ONLY.
SPECIFICATIONS

CONFIGURATOR

Dimensions
W: 1 3/4"
L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft9 Ft10 Ft11 Ft12 FtRun length (Ft)
Light Source
LED
CCT/Color
2700K3000K3500K4000KTunable White
CRI
80 90
Watt^(Approx)
custom
Lumens^(Approx)
300 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
Optics
DirectFloodWide Flood
Adjustable
Dimming
Dim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
Controls/Network
EthernetEnlightedWireless DimmingIntegral Sensor
Power/Voltage
IntegralPoEUNV 120-277V120V277V347V
Integral Emergency
EM Integral
Lumen Maintenance
50000 h
Certificates
UL/CUL
Environment
Damp
Mounting Type
Ceiling RecessedDrywallTrimless DrywallT-Grid CeilingSlot T-Grid Ceiling
Housing
New ConstructionChicago Plenum
Housing Depth
3 ''3 1/2 ''3 19/32 ''4 1/8 ''

Description:

DESCRIPTION

DIMENSIONS

LIGHT SOURCE

WATT/LUMENS

POWER/CONTROLS

i You reconfigured the product. To remove this message please update you custom description.

SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.

CONFIGURATOR

Marks unavailable product configuration, refer to manufacturer’s documentation for details

BUILD CATALOG NUMBER

PRODUCT DESCRIPTION
—

MikroLite 1.5 incorporates a highly aesthetic 1.5” square-in-square optical system that delivers superior visual comfort and flawless color mixing, even at high light output levels. Its tunable precision optics produce streak-free vertical surfaces.

MikroLite 1.5 modules can be combined with multiple optics and blank segments in Sculpt (Pendant, Recessed, Surface), Beam 2 and Beam 4 housings.
