Axis Lighting

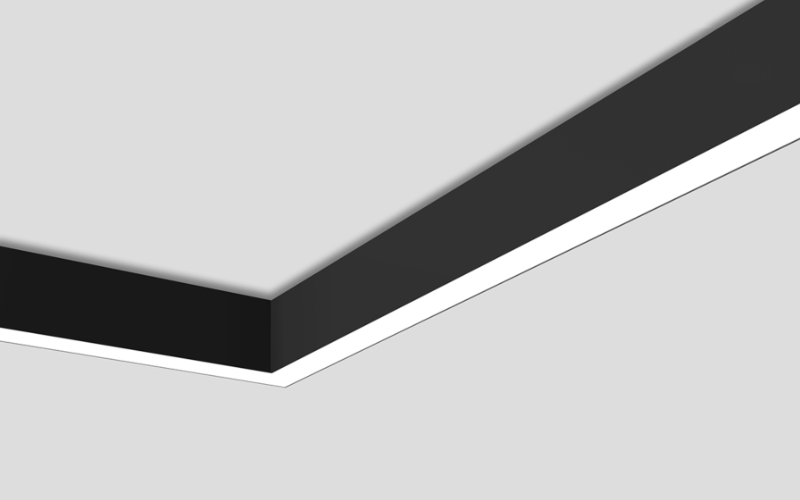

SCRPAT. Sculpt Recessed Mount - Regular Lit Corner Patterns.
 Configure
 Add to project
Axis Lighting. SCRPAT. Sculpt Recessed Mount - Regular Lit Corner Patterns.
Axis Lighting. SCRPAT. Sculpt Recessed Mount - Regular Lit Corner Patterns.
Axis Lighting. SCRPAT. Sculpt Recessed Mount - Regular Lit Corner Patterns.
RESOURCES
DESCRIPTION
Mounting                            Pendant, Recessed, Surface, Wall

Output                                Up to 1000 lm/ft

Efficacy                               Up to 122 lm/W

Lengths                              According to total length specified
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1 3/4"
    L: Run length (Ft)
    H: 0.5"2"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000KTunable White
  • CRI
    90
  • Watt(Approx)
  • Lumens(Approx)
    300 Lm/Ft500 Lm/Ft750 Lm/Ft900 Lm/Ft1000 Lm/Ftcustom
  • Optics
    DirectGeneral DiffusedAsymmetric/Wash
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
  • Controls/Network
    EthernetIntegral Sensor
  • Power/Voltage
    IntegralPoEUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CUL
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedDrywallTrimless DrywallT-Grid CeilingSlot T-Grid Ceiling
  • Housing
    New ConstructionChicago Plenum
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
