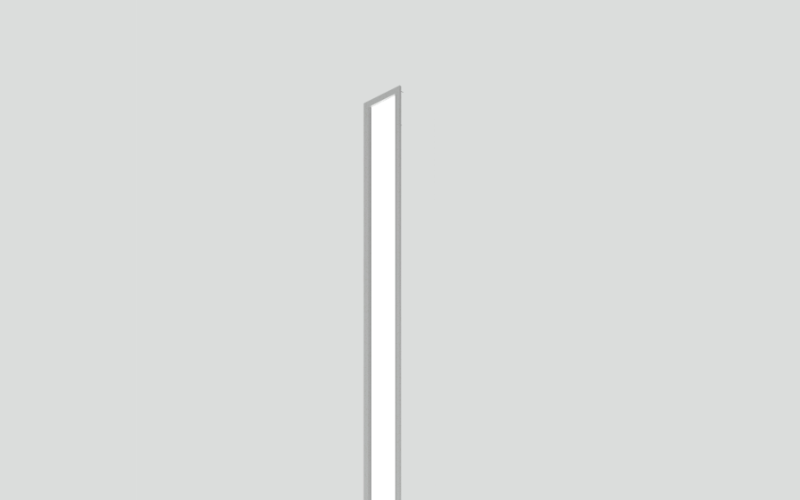

SCRV. Sculpt RECESSED VERTICAL MOUNT.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
As one of Axis’s most flexible linear systems, the Sculpt family brings a new level of creative expression by building on traces of light only 1.5" wide. Sculpt is an exclusive Axis innovation that allows you to create an infinite number of lighting configurations. Sculpt offers a wide choice of linear mountings, including an acoustic lighting version, Sculpt SoftZone®. In addition, Sculpt Kits feature a range of square and rectangular forms, while Geometric™ encompasses non-rectangular forms compatible with Armstrong® DESIGNFlex™ ceiling systems.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 1/2"L: Run length (Ft)
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable White
- CRI80 90
- Watt(Approx)3.25 W/Ft4.4 W/Ft5.55 W/Ftcustom
- Lumens(Approx)300 Lm/Ft400 Lm/Ft500 Lm/Ft900 Lm/Ft1000 Lm/Ftcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Bi-Level0-10VDALILutron Hi-Lume 2-wire (LTEA)Lutron Hi-lume EcoSystem (LDE1)Xitanium SRDMX
- Controls/NetworkEthernetEnlightedWireless Dimming
- Power/VoltageIntegralPoEUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULNYC
- EnvironmentDamp
- Mounting TypeWall Recessed
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSCRV
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
